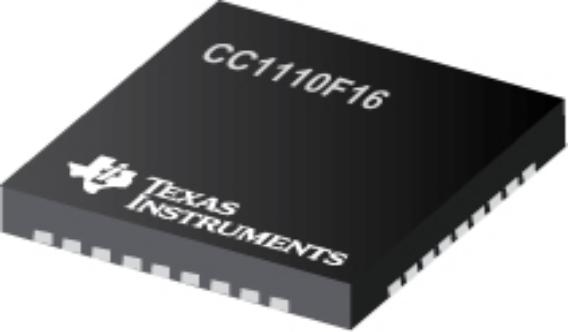

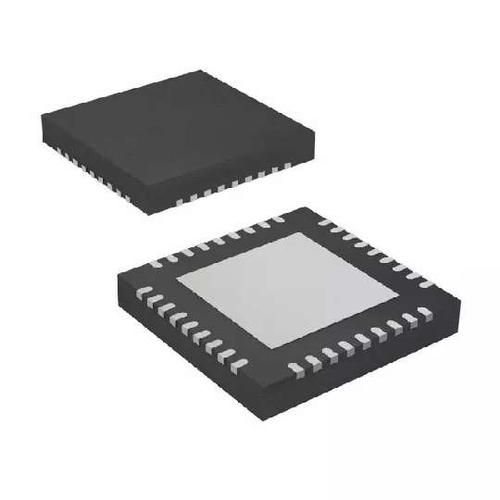

TEXAS INSTRUMENTS CC1110F32RHHR 芯片, 射频收发器, VQFN-36
The is a low-power Sub-1GHz wireless Microcontroller Unit with up to 32kB flash memory designed for low power wireless applications. The CC1110F combines the excellent performance of the state-of-the-art RF transceiver with an industry-standard enhanced 8051 MCU, up to 32kB of in-system programmable flash memory and up to 4kB of RAM and many other powerful features. The MCU is highly suited for systems where very low power consumption is required. This is ensured by several advanced low-power operating modes. A full-speed USB 2.0 interface is featured to MCU. The interfacing to a PC using the USB interface is quick and easy and the high data rate 12Mbps of the USB interface avoids the bottlenecks of RS-232 or low-speed USB interfaces.
ESD sensitive device, take proper precaution while handling the device.
频率 300MHz ~ 348MHz,391MHz ~ 464MHz,782MHz ~ 928MHz
电源电压DC 2.00V min
工作电压 2V ~ 3.6V
针脚数 36
时钟频率 24.0 MHz
RAM大小 4 KB
位数 12
FLASH内存容量 32768 B
输出功率 10 dBm
UART数量 1
待机电流 300 nA
天线接线 Differential
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 36
封装 VQFN-36
封装 VQFN-36
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 计量, 通信与网络, 无线
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 5A992.c
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC1110F32RHHR TI 德州仪器 | 当前型号 | 当前型号 |
CC1110F32RHHT 德州仪器 | 完全替代 | CC1110F32RHHR和CC1110F32RHHT的区别 |
CC1110F16RHHT 德州仪器 | 类似代替 | CC1110F32RHHR和CC1110F16RHHT的区别 |
CC1110F16RHHR 德州仪器 | 类似代替 | CC1110F32RHHR和CC1110F16RHHR的区别 |
