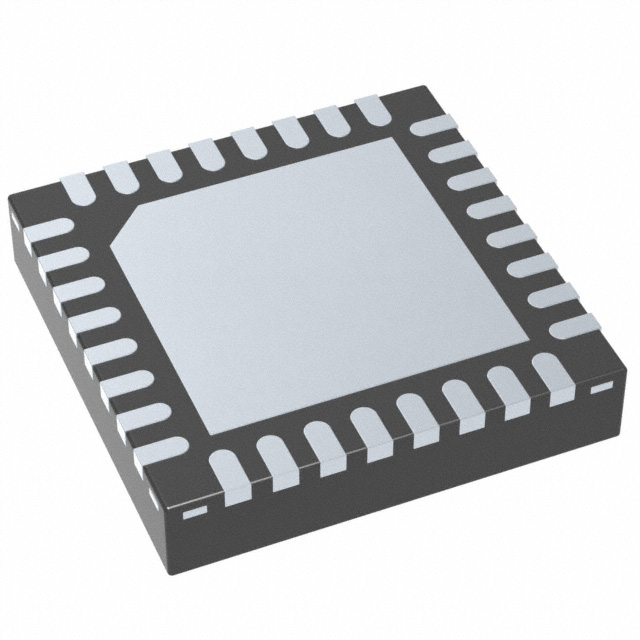

TEXAS INSTRUMENTS CC2543RHBR 芯片, 射频收发器, 2.4GHZ, VQFN-32
The CC2543 is an optimized system-on-chip SoC solution with data rates up to 2Mbps built with low bill-of-material cost. The CC2543 combines the excellent performance of a leading RF transceiver with a single-cycle 8051 compliant CPU, 32-KB in-system programmable flash memory, up to 1-KB RAM, and many other powerful features. The CC2543 has efficient power modes with RAM and register retention below 1 µA, making it highly suited for low-duty-cycle systems where ultra-low power consumption is required. Short transition times between operating modes further ensure low energy consumption.
The CC2543 is compatible with the CC2541/CC2544/CC2545. It comes in a 5-mm × 5-mm QFN32 package, with SPI/UART/I2C interface. The CC2543 comes complete with reference designs from Texas Instruments.
The device targets wireless consumer and HID applications. The CC2543 is tailored for peripheral devices such as wireless mice.
频率 2.4 GHz

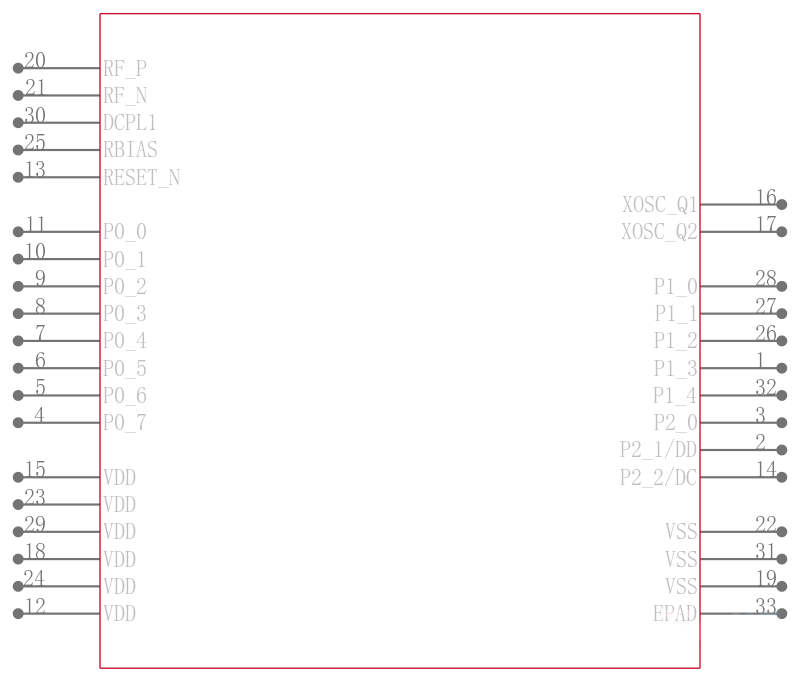

针脚数 32
RAM大小 1 KB
数据速率 2.00 Mbps
FLASH内存容量 32768 B
输出功率 5 dBm
待机电流 400 nA
天线接线 Differential
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 32

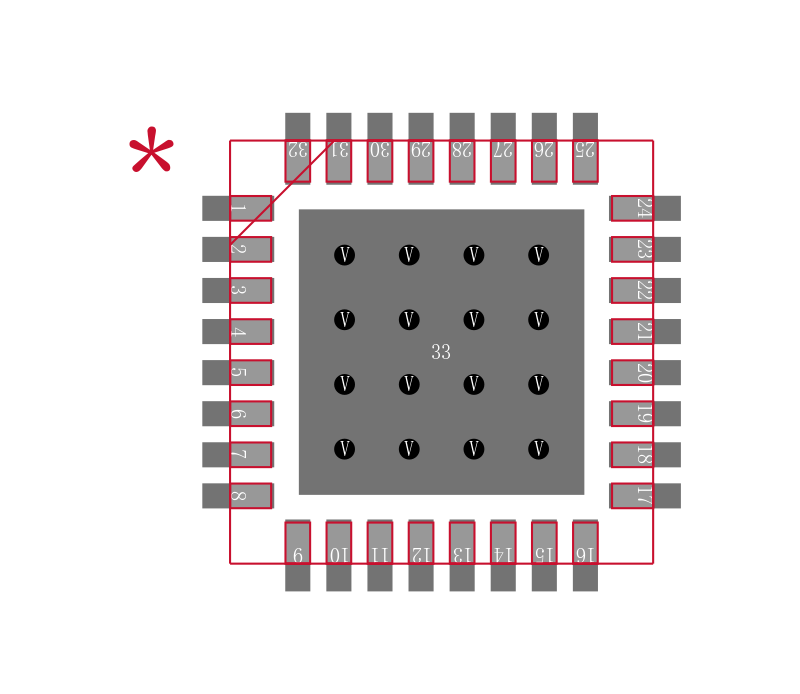

封装 VQFN-32
封装 VQFN-32
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 5A992.c
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC2543RHBR TI 德州仪器 | 当前型号 | 当前型号 |
CC2543RHBT 德州仪器 | 完全替代 | CC2543RHBR和CC2543RHBT的区别 |
