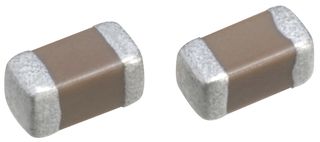

TDK C0603X5R1A103M030BA 多层陶瓷电容器, 表面贴装, C Series, 0.01 µF, ± 20%, X5R, 10 V, 0201 [0603 公制]
10000pF ±20% 10V Ceramic Capacitor X5R 0201 0603 Metric
得捷:
CAP CER 10000PF 10V X5R 0201
立创商城:
10nF ±20% 10V
e络盟:
多层陶瓷电容器, 表面贴装, 10000 pF, 10 V, 0201 [0603 公制], ± 20%, X5R, C Series TDK
艾睿:
Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this C0603X5R1A103M030BA multilayer ceramic capacitor from TDK! It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 0.6 mm long, 0.3 mm tall and 0.3 mm deep. It has a tolerance of 20%. Its capacitance value is 0.01uF.
安富利:
Cap Ceramic 0.01uF 10V X5R 20% SMD 0201 85°C T/R
Verical:
Cap Ceramic 0.01uF 10V X5R 20% Pad SMD 0201 85C Low ESR T/R
Newark:
# TDK C0603X5R1A103M030BA SMD Multilayer Ceramic Capacitor, 0201 [0603 Metric], 0.01 µF, 10 V, ± 20%, X5R, C Series
额定电压DC 10.0 V
电容 10000 pF
容差 ±20 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装 0201

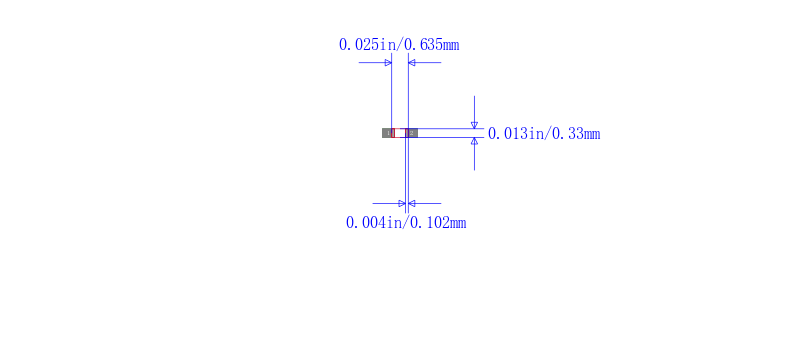

长度 600 µm
宽度 300 µm
高度 0.3 mm
封装 0201
厚度 0.3 mm
材质 X5R/-55℃~+85℃
介质材料 Ceramic Multilayer
工作温度 -55℃ ~ 85℃
产品生命周期 Production Not Recommended for New Design
包装方式 Cut Tape CT
最小包装 15000
制造应用 Commercial Grade, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
C0603X5R1A103M030BA TDK 东电化 | 当前型号 | 当前型号 |
C0603X5R1A103K030BA 东电化 | 类似代替 | C0603X5R1A103M030BA和C0603X5R1A103K030BA的区别 |
C0603X5R0J103M 东电化 | 类似代替 | C0603X5R1A103M030BA和C0603X5R0J103M的区别 |
GRM033R61A103MA01D 村田 | 类似代替 | C0603X5R1A103M030BA和GRM033R61A103MA01D的区别 |
