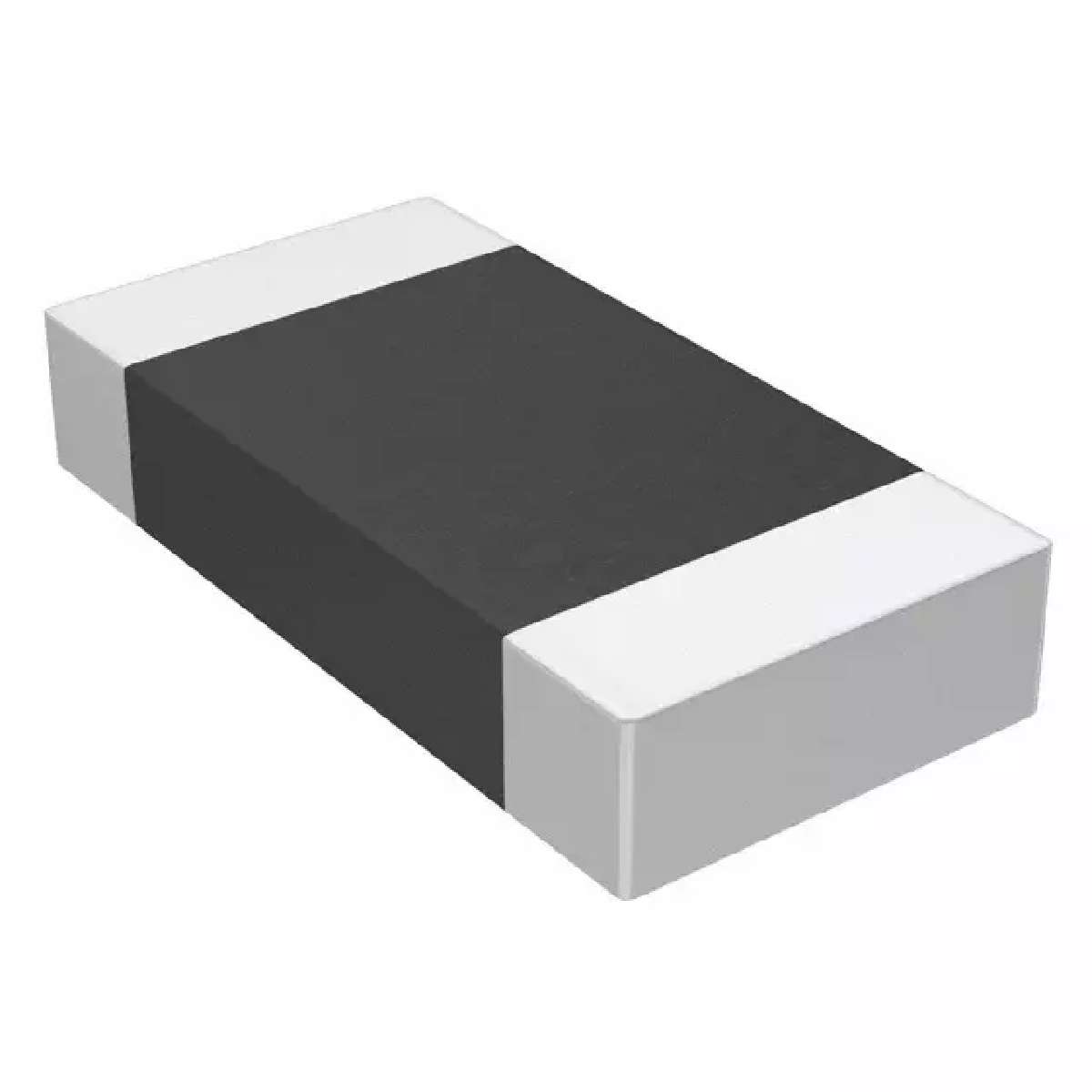

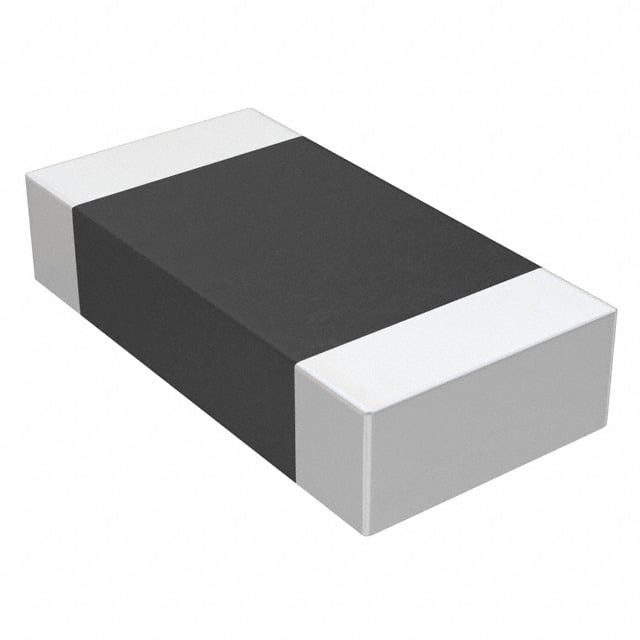

1206 0.047 uF 200 V 10 % 容差 X7R SMD 陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 0.047UF 200V X7R 1206
立创商城:
47nF ±10% 200V
艾睿:
Due to the use of different ceramic dielectric materials used in this CC1206KKX7RABB473 multilayer ceramic capacitor from Yageo, you can choose the right capacitor based on capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 200 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 10%. Its capacitance value is 0.047uF. This product is 3.2 mm long, 1.25 mm tall and 1.6 mm deep.
安富利:
Cap Ceramic 0.047uF 200V X7R 10% SMD 1206 125°C Blister T/R
Verical:
Cap Ceramic 0.047uF 200V X7R 10% Pad SMD 1206 125C T/R
额定电压DC 200 V
绝缘电阻 10 GΩ
电容 0.047 µF
容差 ±10 %
电介质特性 X7R
产品系列 HV
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 200 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.25 mm
封装公制 3216
封装 1206
材质 X7R/-55℃~+125℃
介质材料 Ceramic
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Industrial, Power Management, Portable Devices, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CC1206KKX7RABB473 Yageo 国巨 | 当前型号 | 当前型号 |
CL31B473KDFNNNF 三星 | 类似代替 | CC1206KKX7RABB473和CL31B473KDFNNNF的区别 |
12062C473KAT2A 艾维克斯 | 功能相似 | CC1206KKX7RABB473和12062C473KAT2A的区别 |
1206B473K201CT 台湾华科 | 功能相似 | CC1206KKX7RABB473和1206B473K201CT的区别 |
