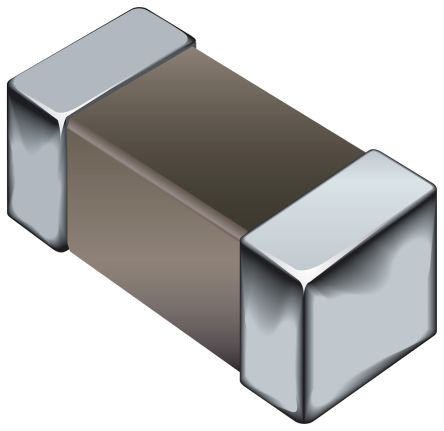

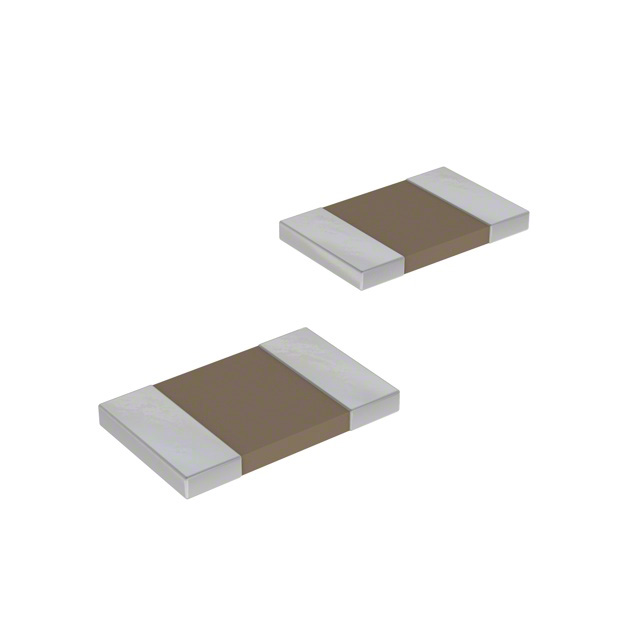

CV201210-100K

BOURNS  CV201210-100K  表面贴装高频电感器, CV201210系列, 10 µH, ± 10%, 0805 [2012 公制], 24 MHz, 1.15 ohm

Bourns 0805 CV201210 系列 - 铁氧体多层片式器

CV201210 系列多层片式电感器采用标准 0805 外壳尺寸提供。 它们采用薄型设计，高度低至 85 mm。 这些表面安装电感器具有镍挡板，并提供磁性屏蔽。

### 产品应用信息

这些片式电感器的推荐应用是防止电子设备次级侧上的信号受到电磁干扰。

得捷:
FIXED IND 10UH 15MA 1.15 OHM SMD

欧时:
Bourns CV201210-100K 多层贴片式电感器, 0805 2012M封装

立创商城:
10uH ±10% 1.15Ω

e络盟:
高频电感器, 10 µH, CV201210系列, 15 mA, 0805 [2012 公制], 多层, 1.15 ohm

艾睿:
This chip CV201210-100K surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 15m A with a maximum resistance of 1.15 Ohm. It has an inductance of 10u H. Its test frequency is 2M Hz, while its minimum self-resonant frequency is 24M Hz. This device is made with multi-layer technology. This product is 2.2 mm long, 1.45 mm tall and 1.45 mm deep.

安富利:
Ind Chip Shielded Multi-Layer 10uH 10% 2MHz 45Q-Factor Ferrite 15mA 0805 T/R

Chip1Stop:
Ind Chip Shielded Multi-Layer 10uH 10% 2MHz 45Q-Factor Ferrite 15mA 2.0 x 1.2 mm T/R

Verical:
Inductor Chip Shielded Multi-Layer 10uH 10% 2MHz 45Q-Factor Ferrite 15mA 1.15Ohm DCR 0805 T/R

Newark:
# BOURNS  CV201210-100K  Surface Mount High Frequency Inductor, CV201210 Series, 10 H, 10%, 0805 [2012 Metric], 24 MHz

MASTER:
Inductor RF Shielded Multi-Layer 10uH 10% 2MHz 45Q-Factor Ferrite 0.015A 1.15Ohm DCR 0805 T/R

Electro Sonic:
Inductor RF Shielded Multi-Layer 10uH 10% 2MHz 45Q-Factor Ferrite 0.015A 1.15Ohm DCR 0805 T/R
