CREE CLM1B-GKW-CVAXA7A3 发光二极管, 绿色, SMD, 20 mA, 3.2 V, 527 nm

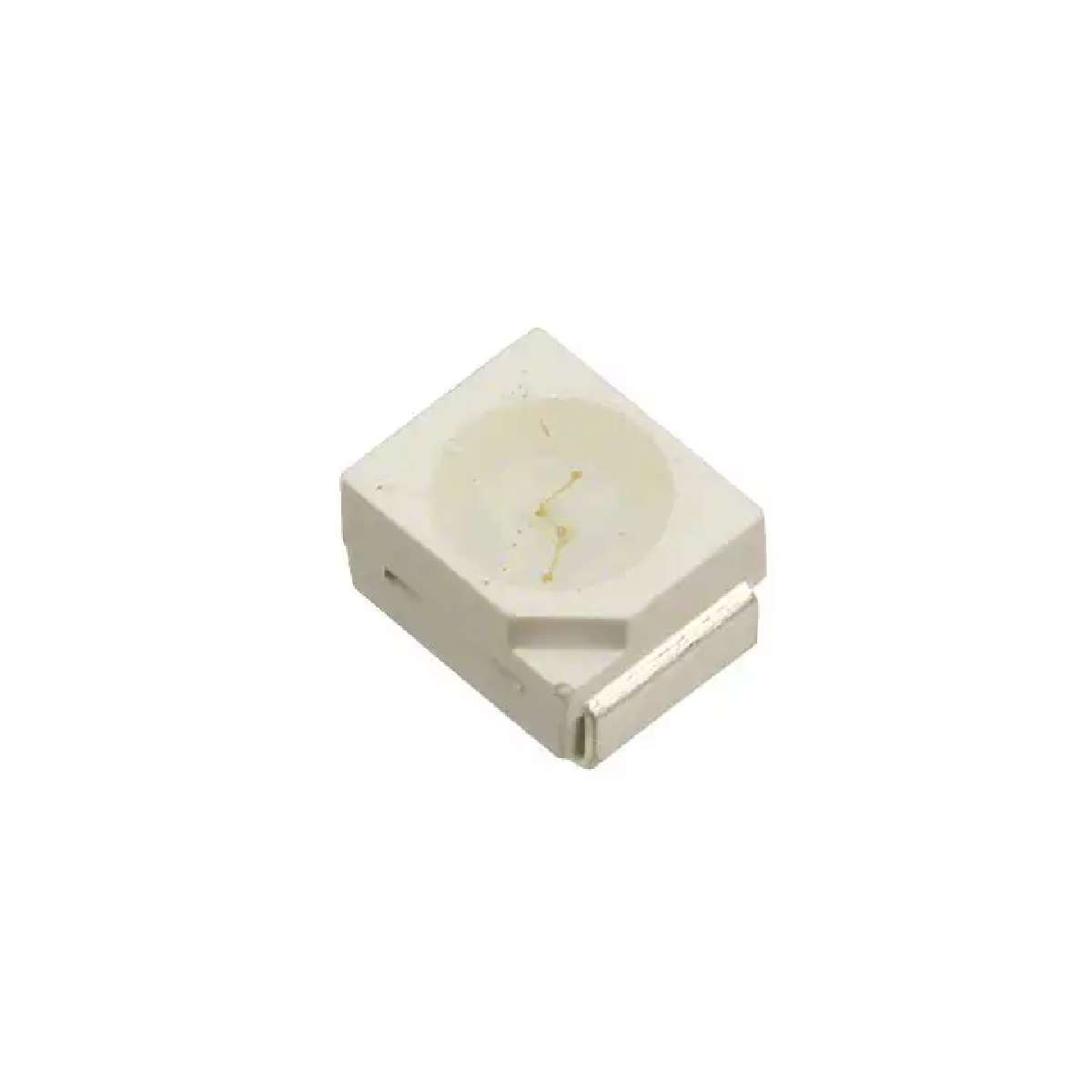

The is a PLCC2 1-in-1 green SMD packaged in the industry standard package. This LED offers high reliability performance and is designed to work under a wide range of environmental conditions. The high reliability feature makes it ideally suited to be used under illumination application conditions. Its wide viewing angle makes this LED ideally suited for channel letter or general backlighting and illumination applications. The flat top emitting surface makes it easy for this LED to mate with light pipes.
- .
- 710 to 2240mcd Luminous intensity
- .
- -40 to 100°C Operating temperature range
正向电压 3.2 V
波长 527 nm
发光强度 1.3 cd
视角 120°
耗散功率 100 W
测试电流 20 mA
正向电流 20 mA
正向电流Max 25 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 2
封装 PLCC-2
长度 3.2 mm
宽度 2.7 mm
高度 2.05 mm
封装 PLCC-2
颜色 Green
产品生命周期 Obsolete
包装方式 Cut Tape CT
制造应用 LED Lighting, Industrial, 信令, 工业, 发光二极管照明, Signalling
RoHS标准 RoHS Compliant
含铅标准 Lead Free
