CI160808-18NJ

BOURNS  CI160808-18NJ  表面贴装高频电感器, CI160808系列, 18 nH, ± 5%, 0603 [1608 公制], 1.35 GHz, 0.5 ohm

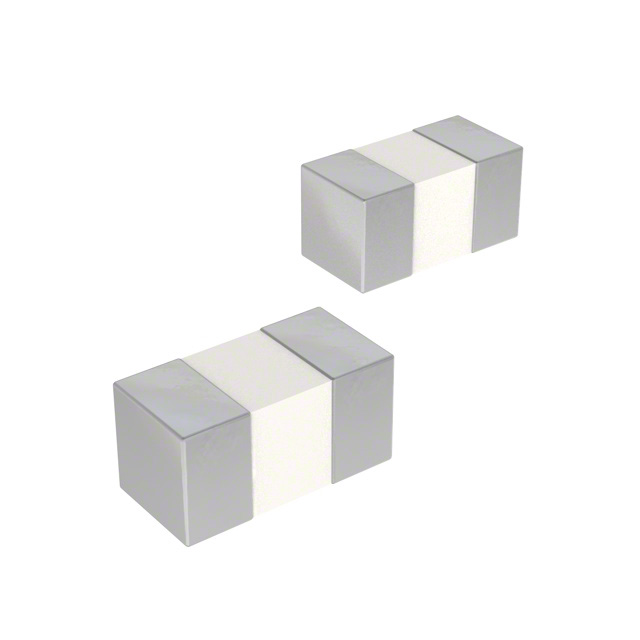

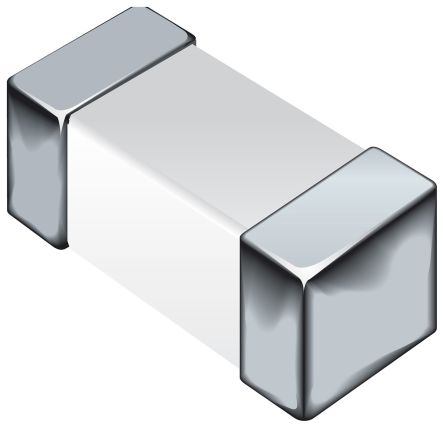

Bourns 0603 CI160808 系列 - 多层片式器

CI60808 系列多层片式电感器采用标准 0603 外壳尺寸提供。 它们具有高频率和镍挡板。 提供 E12 系列选项。

得捷:
FIXED IND 18NH 300MA 500MOHM SMD

欧时:
Bourns CI160808 系列 CI160808-18NJ 18 nH 陶瓷 多层贴片式电感器, 160808封装, SRF: 2.05GHz Q: 10 300mA dc

贸泽:
Fixed Inductors 18nH 5% MultiLayer High Frequency

e络盟:
高频电感器, 18 nH, CI160808系列, 300 mA, 0603 [1608 公制], 多层, 0.5 ohm

艾睿:
Make any circuit look clean and compact using this chip CI160808-18NJ surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 500m Ohm. It has a tolerance of 5%. This device utilizes multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.35G Hz. It has an inductance of 18n H.

安富利:
Ind Chip Multi-Layer 18nH 5% 100MHz 10Q-Factor Ceramic 300mA 0603 T/R

Chip1Stop:
Inductor Chip Multi-Layer 18nH 5% 100MHz 10Q-Factor Ceramic 300mA 500mOhm DCR 0603 Automotive T/R

Verical:
Inductor RF Multi-Layer 0.018uH 5% 100MHz 10Q-Factor Ceramic 0.3A 0.5Ohm DCR 0603 Automotive T/R

Newark:
# BOURNS  CI160808-18NJ  Surface Mount High Frequency Inductor, CI160808 Series, 18 nH, 5%, 0603 [1608 Metric], 1.35 GHz

Electro Sonic:
Inductor General Purpose Chip Laser Cut 18nH 5% 100MHz 10Q-Factor Alumina Ceramic 350mA 450mOhm DCR 0603 T/R

Win Source:
FIXED IND 18NH 300MA 500MOHM SMD / 18 nH Unshielded Multilayer Inductor 300 mA 500mOhm Max 0603 1608 Metric
