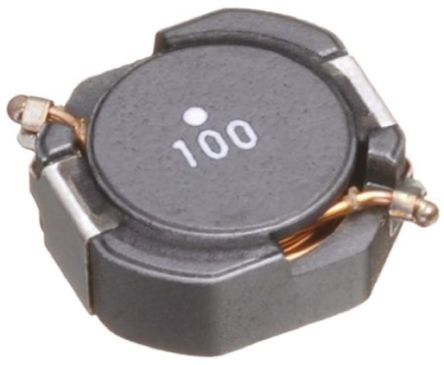

TDK CLF12555T-4R7N 表面贴装功率电感器, CLF系列, 4.7 µH, ± 30%, 屏蔽, 0.0117 ohm, 5.3 A
固定器
得捷:
FIXED IND 4.7UH 5.3A 15.2MOHM SM
立创商城:
4.7uH ±30% 5.3A 11.7mΩ
欧时:
### SMD 功率电感器 - CLF12555 系列TCLF12555 系列为高磁性屏蔽式 EMC 防护 应用包括 LCD-TV、PDP-TV、LCD 显示屏、BD 记录器、DVD 录像机和 STB ### TDK 非标准 SMT 电感器(扼流圈)
e络盟:
TDK CLF12555T-4R7N 表面贴装功率电感器, CLF系列, 4.7 µH, ± 30%, 屏蔽, 0.0117 ohm, 5.3 A
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power CLF12555T-4R7N surface mount inductor from TDK is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 105 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 5.3Typ A with a maximum resistance of 15.2m Ohm. This product is 12.8 mm long, 5.85 mm tall and 12.4 mm deep. Its test frequency is 100K Hz. It has an inductance of 4.7u H. This device utilizes wirewound technology.
安富利:
CLF12555T-4R7N
Chip1Stop:
Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 5.3A 15.2mOhm DCR Blister T/R
额定电流 5.3 A
容差 ±30 %
电感 4.7 µH
电感公差 ±30 %
测试频率 100 kHz
电阻DC) 15.2 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.0117 Ω
安装方式 Surface Mount

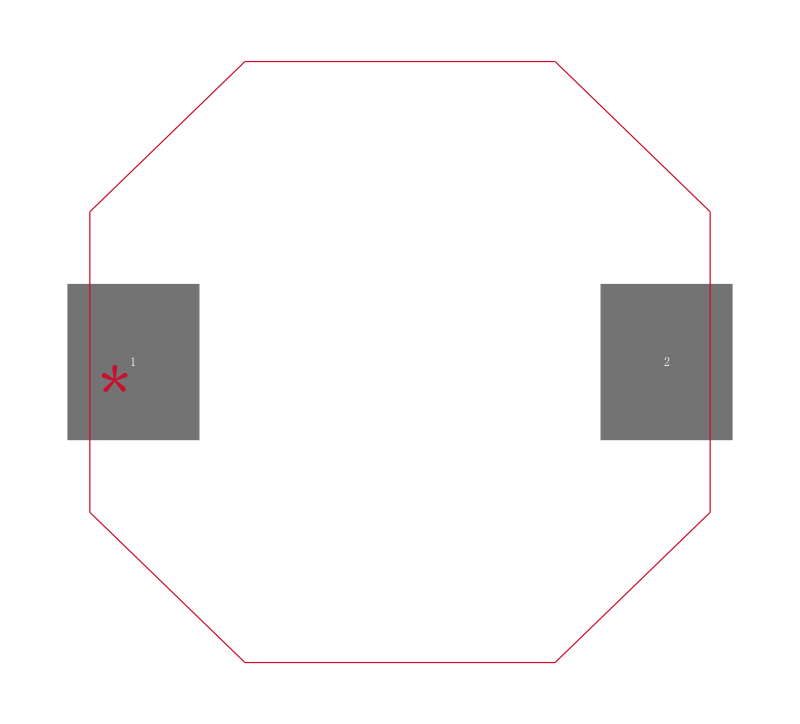

封装 12.5mm x 12.1mm x 5.5mm
长度 12.5 mm
宽度 12.1 mm
高度 5.5 mm
封装 12.5mm x 12.1mm x 5.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
