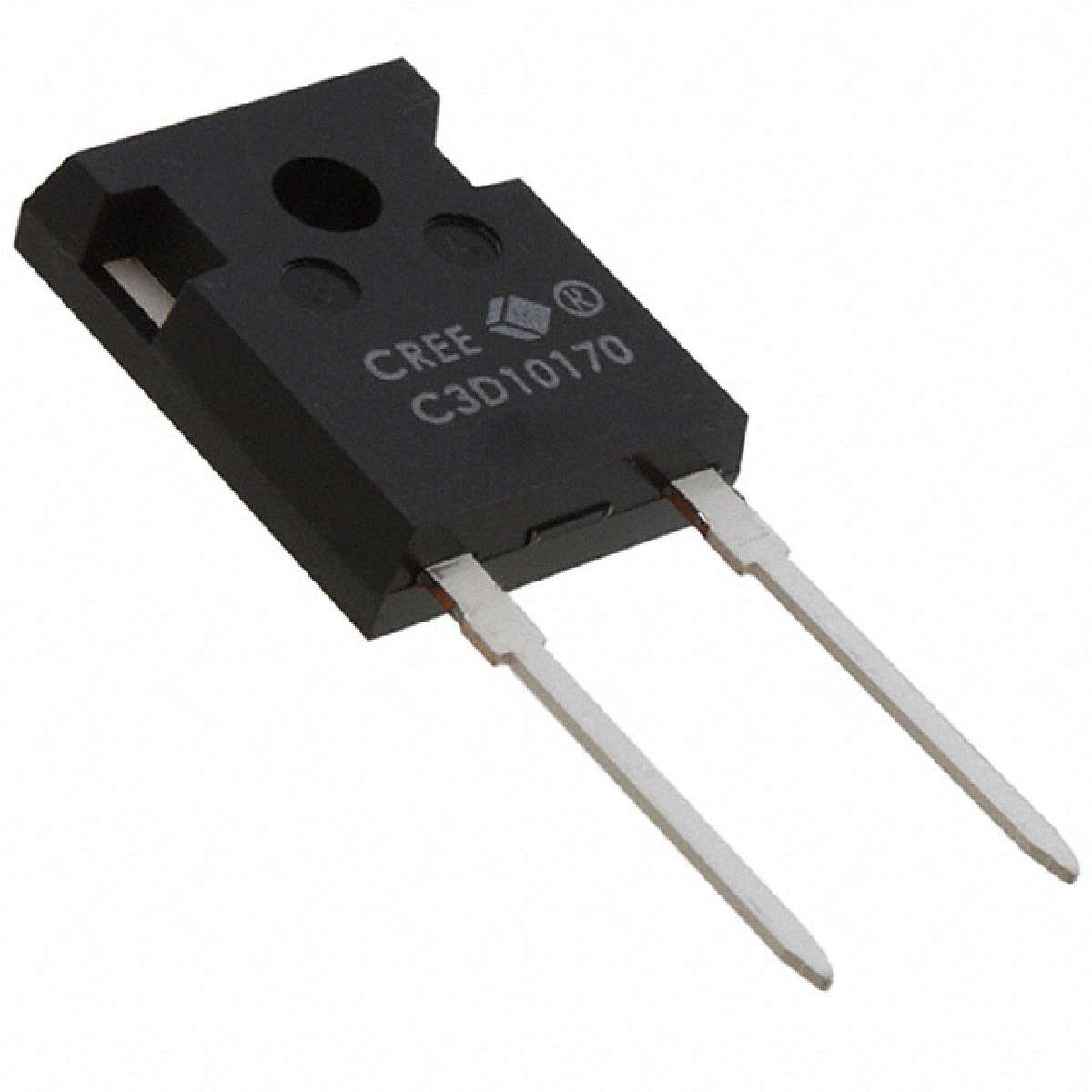

Diode Schottky 1.7kV 14.4A 2Pin2+Tab TO-247
Diode Silicon Carbide Schottky 1700 V 14.4A DC Through Hole TO-247-2
艾睿:
This C3D10170H rectifier from Cree is a crucial component in DC power supplies and high-voltage DC power transmission systems.
Chip1Stop:
Diode Schottky 1.7KV 14.4A Automotive 2-Pin2+Tab TO-247
TME:
Diode: Schottky rectifying; THT; 1.7kV; 10A; 231W; TO247-2
Verical:
Rectifier Diode Schottky 1.7KV 14.4A 2-Pin2+Tab TO-247
额定功率 231 W
负载电流 10 A
正向电压 2V @10A
耗散功率 231 W
热阻 0.65℃/W RθJC
反向恢复时间 0 ns
正向电流 10 A
最大正向浪涌电流(Ifsm) 55 A
正向电流Max 14400 mA
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 231000 mW
安装方式 Through Hole
引脚数 2
封装 TO-247-2
封装 TO-247-2
工作温度 -55℃ ~ 175℃
产品生命周期 Not For New Designs
包装方式 Tube
RoHS标准
含铅标准 Lead Free
