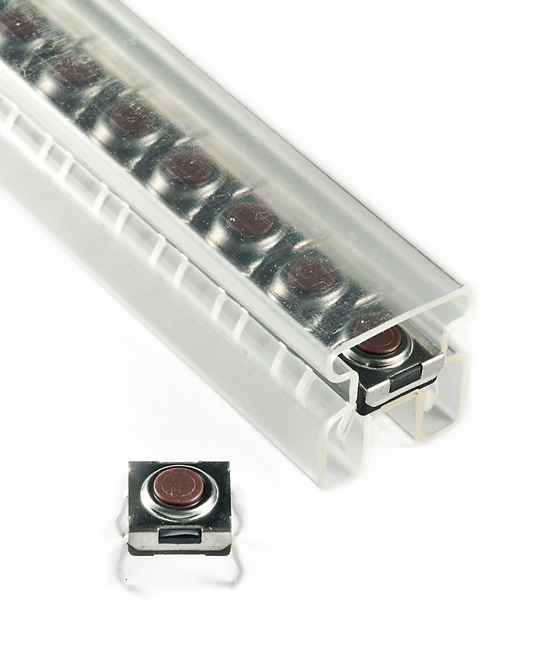

Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 100000Cycles 1.57N Thru-Hole Stick
This tactile switch from Switches is perfect for turning on your circuit by applying pressure. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The CB15FP-S tactile switch has a PC pin termination style. This product is 6.2 mm long, 3.1 mm tall and 6.8 mm deep. The maximum DC voltage rating is 24 VDC.
额定电压DC 24 V
接触器类型 Button
额定电流 .50 mA
触点类型 SPST
额定电流Max 0.05A @24VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 24 VDC
接触电阻Max 100 mΩ
安装方式 Through Hole
长度 6.2 mm
宽度 6.2 mm
高度 3.1 mm
触点材质 Beryllium Copper
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
