1206 2.2uF ±10% 35V X7R
2.2µF ±10% 35V Ceramic Capacitor X7R 1206 3216 Metric
得捷:
CAP CER 2.2UF 35V X7R 1206
立创商城:
2.2uF ±10% 35V
艾睿:

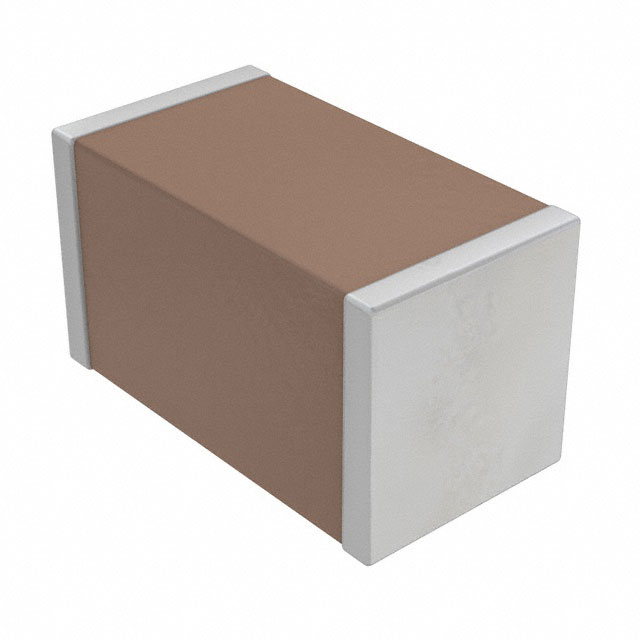

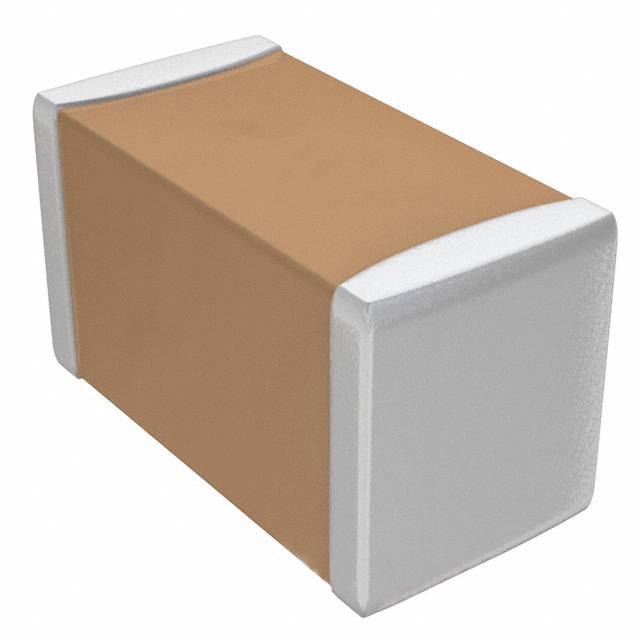

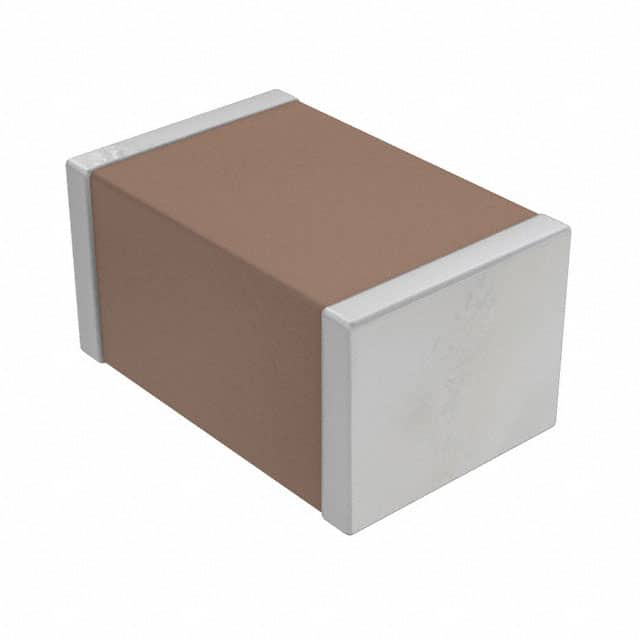

This CGA5L3X7R1V225K160AB multilayer ceramic capacitor MLCC from TDK consists of alternating layers of ceramic, which acts as the dielectric, and a metal layer, which acts as the electrodes. It can withstand a voltage of 35 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 10%. Its capacitance value is 2.2uF.
额定电压DC 35 V
电容 2.2 µF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 35 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
厚度 1.6 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 汽车级, Automotive Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CGA5L3X7R1V225K160AB TDK 东电化 | 当前型号 | 当前型号 |
CGA5L3X7R1H225K160AB 东电化 | 功能相似 | CGA5L3X7R1V225K160AB和CGA5L3X7R1H225K160AB的区别 |
CGA5L2X7R1E225K160AA 东电化 | 功能相似 | CGA5L3X7R1V225K160AB和CGA5L2X7R1E225K160AA的区别 |
