CRL1206-FW-R220ELF概述

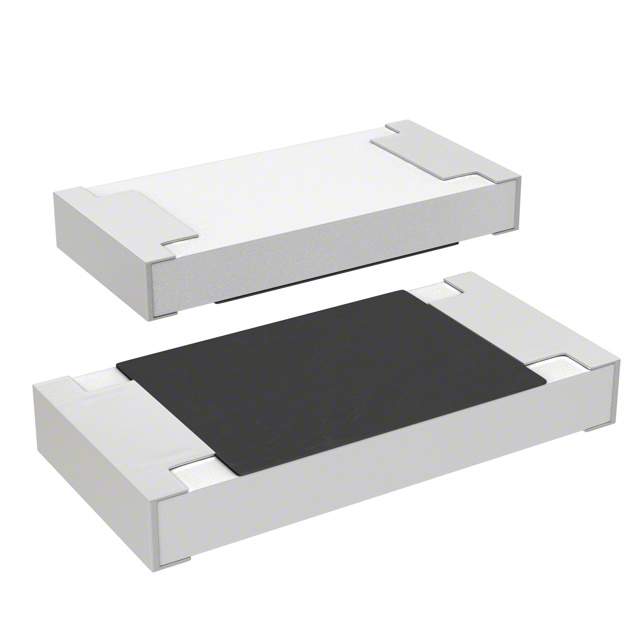

BOURNS  CRL1206-FW-R220ELF  片式电阻器, 表面贴装, 厚膜, CRL系列, 0.22 ohm, 1206 [3216公制], 250 mW, ± 1%

1206 格式 CRL1206 系列 - 1%

Bourns® 的 CRL1206 系列低值片式器,70°C 时额定功率 0.25W。


欧时:
### 1206 格式 CRL1206 系列 - 1%Bourns® 的 CRL1206 系列低值片式电阻器,70°C 时额定功率 0.25W。### 贴片


得捷:
RES SMD 0.22 OHM 1% 1/4W 1206


e络盟:
SMD片式电阻, 1206 [3216公制], 0.22 ohm, CRL Series, 厚膜, 250 mW


艾睿:
Use this CRL1206-FW-R220ELF fixed single surface-mount resistor from Bourns to obtain a visually clean layout. This product has a resistance value of 220m Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 125 °C. This device is made with thick film technology.


安富利:
Res Thick Film 1206 0.22 Ohm 1% 1/4W ±200ppm/°C Molded SMD SMD Paper Tape on Plastic Reel


Verical:
Res Thick Film 1206 0.22 Ohm 1% 0.25W1/4W ±200ppm/C Pad SMD T/R


Newark:
# BOURNS  CRL1206-FW-R220ELF  SMD Chip Resistor, Thick Film, 0.22 ohm, 1206 [3216 Metric], 250 mW, ± 1%, CRL Series


MASTER:
Res Thick Film 1206 0.22 Ohm 1% 0.25W1/4W ±200ppm/°C Molded SMD T/R


Electro Sonic:
Res Thick Film 1206 0.22 Ohm 1% 0.25W1/4W ±200ppm/°C Molded SMD T/R


CRL1206-FW-R220ELF中文资料参数规格
技术参数

容差 ±1 %

额定功率 250 mW

产品系列 CRL

电阻 220 mΩ

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.6 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

在线购买CRL1206-FW-R220ELF
型号: CRL1206-FW-R220ELF
制造商: Bourns J.W. Miller 伯恩斯
描述:BOURNS  CRL1206-FW-R220ELF  片式电阻器, 表面贴装, 厚膜, CRL系列, 0.22 ohm, 1206 [3216公制], 250 mW, ± 1%
替代型号CRL1206-FW-R220ELF
型号/品牌 代替类型 替代型号对比

CRL1206-FW-R220ELF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CRL1206-FW-R220E

伯恩斯

类似代替

CRL1206-FW-R220ELF和CRL1206-FW-R220E的区别

RL1206FR-070R22L

国巨

功能相似

CRL1206-FW-R220ELF和RL1206FR-070R22L的区别
