1812 220nF ±10% 630V X7T
0.22 µF ±10% 630V 陶瓷器 X7T 1812(4532 公制)
欧时:
Capacitor Multi Layer Ceramic X7T SMD 18
得捷:
CAP CER 0.22UF 630V X7T 1812
立创商城:
220nF ±10% 630V
艾睿:
This C4532X7T2J224K200KE multilayer ceramic capacitor from TDK is available with a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes flexiterm technology. Its capacitance value is 0.22uF. This product is 4.5 mm long, 2 mm tall and 3.2 mm deep. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.22uF 630V X7T 10% SMD 1812 125°C Blister Plastic T/R
Verical:
Cap Ceramic 0.22uF 630V X7T 10% Pad SMD 1812 Soft Termination 125C T/R
额定电压DC 630 V
电容 0.22 µF
容差 ±10 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 4832
封装 1812

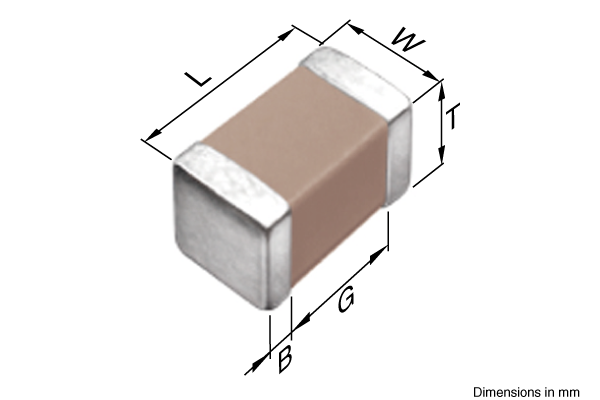

长度 4.5 mm
宽度 3.2 mm
高度 2 mm
封装公制 4832
封装 1812
材质 X7T/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
制造应用 Boardflex 敏感, for Automotive use., Please refer to Part No., Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
