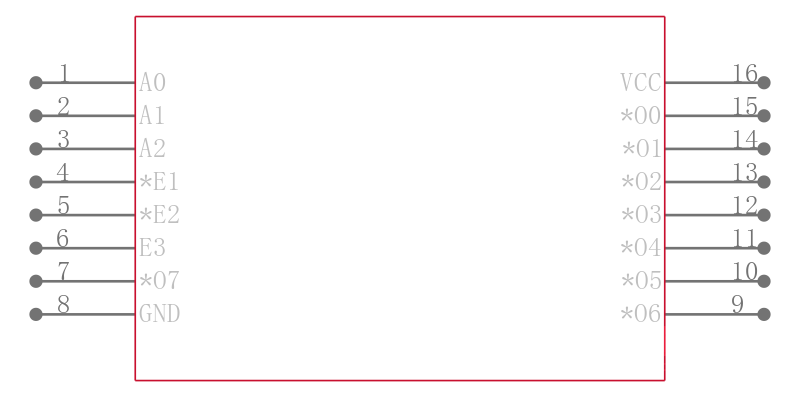

1 - 8解码器 1-of-8 Decoder
Make a strong finite state machine by implementing this from Texas Instruments. This decoder has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
电源电压DC 4.75V min
输出接口数 8
电路数 2
位数 1
电压波节 5.00 V
带宽 70.0 MHz
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 16

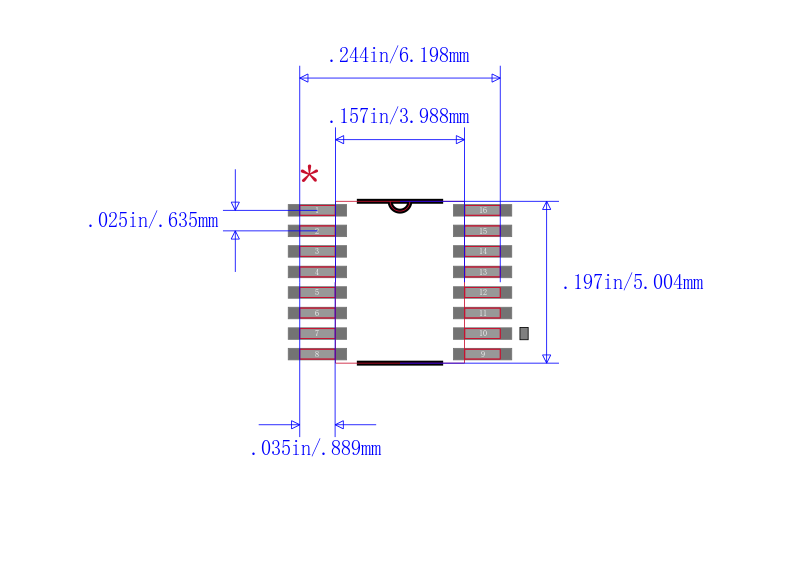

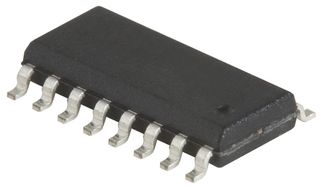

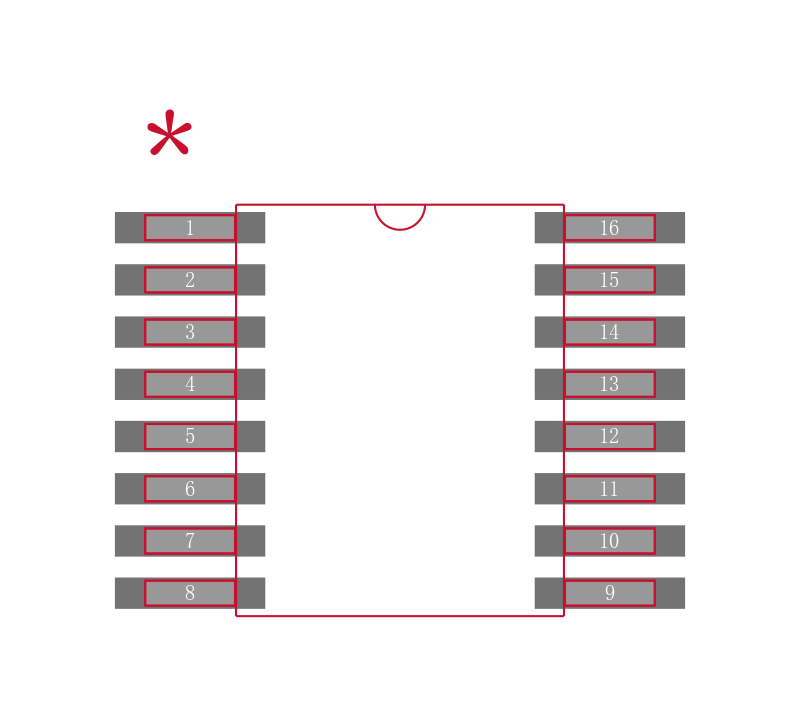

封装 SSOP-16
宽度 4 mm
封装 SSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CY74FCT138ATQCT TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS47DR 德州仪器 | 功能相似 | CY74FCT138ATQCT和SN74LS47DR的区别 |
AC11 国巨 | 功能相似 | CY74FCT138ATQCT和AC11的区别 |
