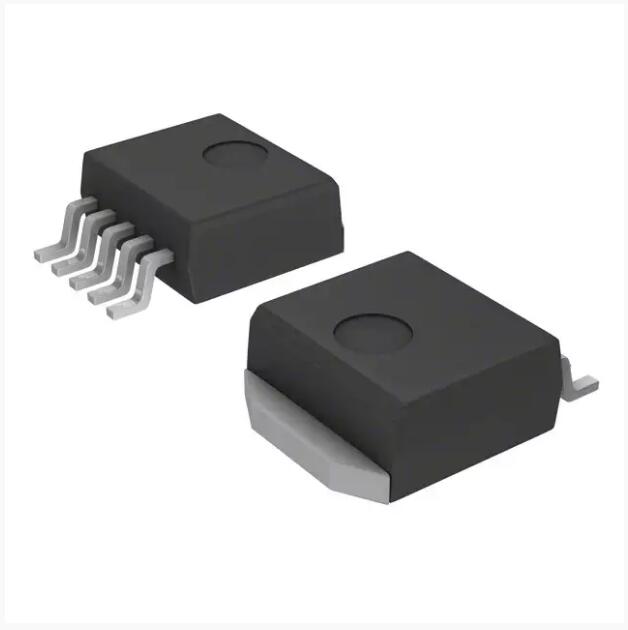

CS8182 系列 可调 200 mA 低压差 跟踪 稳压器/线路驱动器 - D2PAK-5
Keep calm and stay stable by implementing this LDO linear regulator developed by . Its typical dropout voltage at current is 0.1@100uA|0.35@200mA V. This voltage regulation device"s single output can produce a current up to 0.2 A. Use this part at voltages between 3.4 V and 45 V. With an adjustable output that has a voltage of -10 to 45 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 10mV and line regulation of 10mV. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is negative and positive|positive. The maximum dropout voltage is 0.15@100uA|0.5@30mA|0.6@200mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
无卤素状态 Halogen Free
输出接口数 1
输出电压 2.8V ~ 45V
输出电流 200 mA
极性 P-Channel
跌落电压 0.35V @200mA
输入电压Max 45 V
输入电压Min 3.4 V
输出电流Max 0.2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3.4V ~ 45V
安装方式 Surface Mount
引脚数 6
封装 TO-263-6
高度 4.57 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CS8182YDPSR5G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CS8182YDPS5 安森美 | 完全替代 | CS8182YDPSR5G和CS8182YDPS5的区别 |
CS8182YDPS5G 安森美 | 完全替代 | CS8182YDPSR5G和CS8182YDPS5G的区别 |
CS8182YDPSR5 安森美 | 类似代替 | CS8182YDPSR5G和CS8182YDPSR5的区别 |
