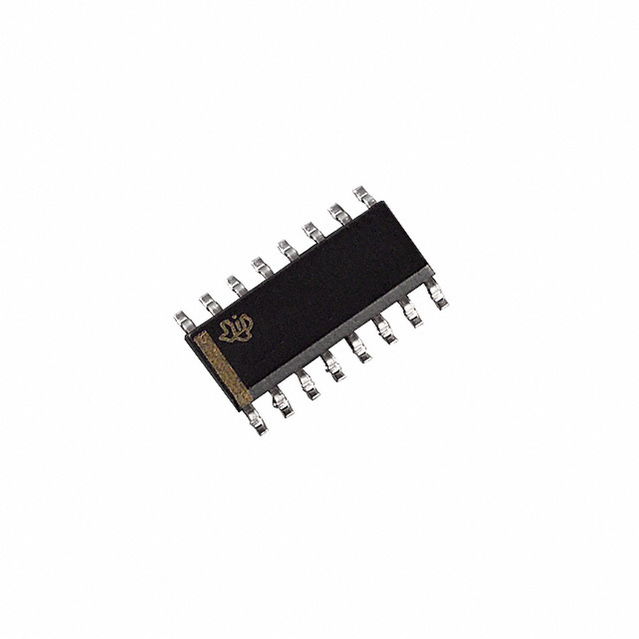

TEXAS INSTRUMENTS CD14538BM96 芯片, 多谐振荡器, MONO, 双路, 300NS, SOIC16
The is a CMOS dual precision Monostable Multivibrator provides stable retriggerable/resettable one-shot operation for any fixed-voltage timing application. An external resistor RX and an external capacitor CX control the timing and accuracy for the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q\ terminals. The time delay from trigger input to output transition trigger propagation delay and the time delay from RESET input to output transition are independent of RX and CX. Precision control of output pulse widths is achieved through linear CMOS techniques. Leading-edge-triggering +TR and trailing-edge-triggering -TR inputs are provided for triggering from either edge of an input pulse. An unused +TR input should be tied to VSS. An unused -TR input should be tied to VDD. A RESET on low level is provided for immediate termination of the output pulse or to prevent output pulses when power is turned on.
电源电压DC 3.00V ~ 18.0V
输出电流 6.80 mA
针脚数 16
位数 2
电压波节 5.00 V, 10.0 V, 15.0 V
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 9.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 国防, 工业, 军用与航空, 时钟与计时
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CD14538BM96 TI 德州仪器 | 当前型号 | 当前型号 |
CD14538BMT 德州仪器 | 完全替代 | CD14538BM96和CD14538BMT的区别 |
CD14538BM96E4 德州仪器 | 完全替代 | CD14538BM96和CD14538BM96E4的区别 |
CD14538BM96G4 德州仪器 | 完全替代 | CD14538BM96和CD14538BM96G4的区别 |
