CAT16-153J4LF

BOURNS  CAT16-153J4LF  电阻阵列, 4X, 15KΩ, 5%, SMD

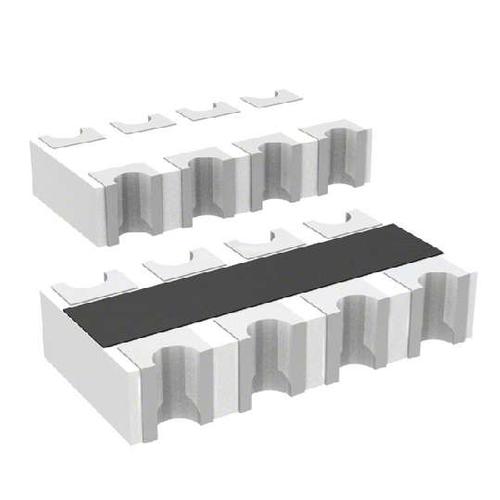

CAT16 系列凹面片式器阵列

凹面接线端子

电阻容差 ±5 %

电阻范围：10 Ω 至 1 MΩ

Bourns CAT16 系列片式电阻器阵列提供 4 或 8 隔离式元件。

得捷:
RES ARRAY 4 RES 15K OHM 1206

立创商城:
15kΩ ±5%

欧时:
### CAT16 系列凹面片式电阻器阵列Bourns CAT16 系列片式电阻器阵列提供 4 或 8 隔离式元件。 凹面接线端子 电阻容差 ±5 % 电阻范围：10 Ω 至 1 MΩ   | 4 隔离电阻器 | 8 隔离电阻器 ---|---|--- 70°C 时功率 | 62mW（单个）， 250mW（总体） | 62mW（单个）， 250mW（总体） 最大工作电压 | 50V 直流 | 50V 直流 尺寸（长 x 宽 x 高） | 3.2 x 1.6 x 0.5 mm | 6.4 x 1.6 x 0.5 mm 引线间距 | 0.8 mm | 0.8 mm 电阻容差 | ±5% | ±5% 温度系数 | ±200 ppm/°C | ±200 ppm/°C 工作温度 | -55°C → +125°C | -55°C → +125°C ![http://china.rs-online.com/largeimages/L241922-01.gif]http://china.rs-online.com/largeimages/L241922-01.gif![http://china.rs-online.com/largeimages/L5225377-01.gif]http://china.rs-online.com/largeimages/L5225377-01.gif ![http://china.rs-online.com/largeimages/LD241922-01.gif]http://china.rs-online.com/largeimages/LD241922-01.gif ### 表面安装 - 隔离/总线

e络盟:
固定阵列电阻, 15 kohm, CAT16系列, 4 元件, 隔离, 1206 [3216公制], 8 引脚

艾睿:
If you&s;re looking to conserve space in your circuit design, then this CAT16-153J4LF resistor array from Bourns will save you valuable space by packing multiple resistors into one IC chip. This product&s;s 4 resistors have a value of 15K Ohm. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.2 mm long, 0.5 mm tall and 1.55 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. The CAT16-153J4LF part has a concave termination style. This product&s;s terminal pitch is 0.8 mm. It has a tolerance of 5%.

Allied Electronics:
CAT16 SER 15kOhm +/-5% Iso SMT RestrArray, 4 Restrs, 0.25W total 1206 Concave

安富利:
Res Thick Film Array 15K Ohm 5% ISOL Molded 8-Pin 1206 Concave SMD Paper T/R

Chip1Stop:
Res Thick Film Array 15K Ohm 5% ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Concave SMD T/R

Verical:
Res Thick Film Array 15K Ohm 5% 0.25W1/4W ±200ppm/C ISOL 8-Pin 12064 X 0603 Concave SMD T/R

Newark:
# BOURNS  CAT16-153J4LF  RESISTOR N/W, 4RES, 15KOHM, 5%, SMD

Electro Sonic:
Res Thick Film Array 15K Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Concave SMD T/R
