CAT25-472JALF

BOURNS  CAT25-472JALF  厚膜电阻阵列, 4.7kΩ X8

CAT25 系列凹面片式器阵列

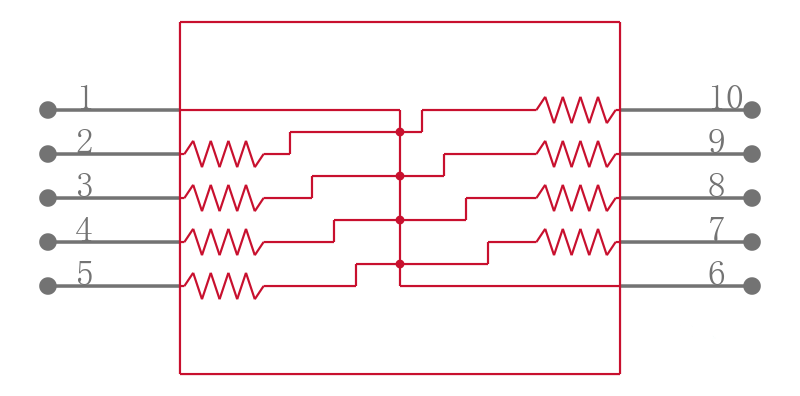

Bourns CAT25 系列片式电阻器阵列提供 8 个总线元件。

凹面接线端子

电阻容差 ±5%

欧时:
Bourns CAT25 系列 4.7kΩ 8电阻 贴片排阻 CAT25-472JALF, ±5%容差, 总线, 1608 封装

得捷:
RES ARRAY 8 RES 4.7K OHM 1608

e络盟:
固定阵列电阻, 4.7 kohm, CAT25 Series, 8 元件, 总线, 1608 [4021公制], 10 引脚

艾睿:
By combining multiple resistors into a single chip, the CAT25-472JALF resistor array, developed by Bourns, can help you save space and power in your circuit design. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 8 resistors have a value of 4.7K Ohm. It has 10 terminals. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 4 mm long, 0.55 mm tall and 2.1 mm deep. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm. This device is made with thick film technology. The CAT25-472JALF part has a concave termination style. It has a tolerance of 5%.

Allied Electronics:
Resistor; Thick Film; Networks & Arrays; 4.7K; 5%; 10 Pin

安富利:
Res Thick Film Array 4.7K Ohm 5% ±200ppm/°C BUS Molded 10-Pin 1608 Concave SMD Embossed T/R

Chip1Stop:
Res Thick Film Array 4.7K Ohm 5% 200ppm/ C BUS Molded 10-Pin 16088 X 0804 Concave SMD Embossed T/R

Verical:
Res Thick Film Array 4.7K Ohm 5% ±200ppm/C BUS Molded 10-Pin 16088 X 0804 Concave SMD T/R

Newark:
# BOURNS  CAT25-472JALF  Fixed Network Resistor, Bussed, 4.7 kohm, 25 V, 8 Elements, Bussed, 1608 [4021 Metric], 62.5 mW

MASTER:
Res Thick Film Array 4.7K Ohm 5% ±200ppm/°C BUS 10-Pin 16088 X 0804 Concave SMD T/R

Win Source:
RES ARRAY 8 RES 4.7K OHM 1608

Electro Sonic:
Res Thick Film Array 4.7K Ohm 5% ±200ppm/°C BUS 10-Pin 16088 X 0804 Concave SMD T/R
