SMD片式电阻, 1206 [3216公制], 390 ohm, CR Series, 200 V, 厚膜, 250 mW
390 Ohms ±1% 0.25W, 1/4W Chip Resistor 1206 3216 Metric Moisture Resistant Thick Film
得捷:
RES SMD 390 OHM 1% 1/4W 1206
e络盟:
SMD片式电阻, 1206 [3216公制], 390 ohm, CR Series, 200 V, 厚膜, 250 mW
艾睿:

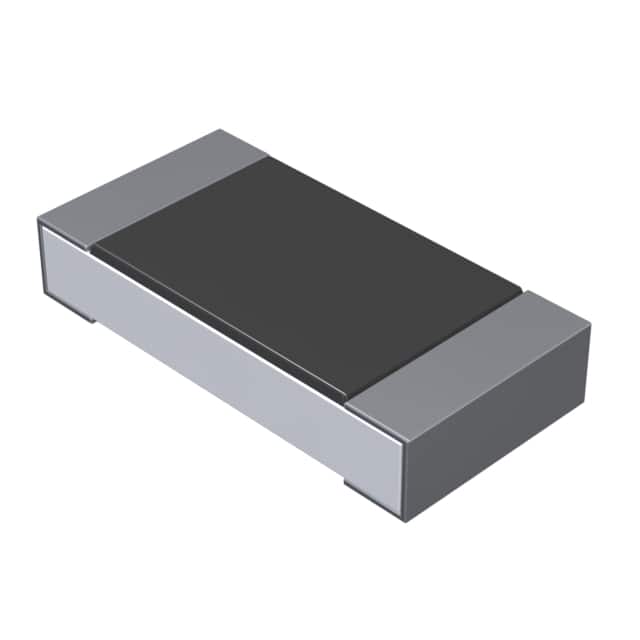

Use this CR1206-FX-3900ELF fixed single surface-mount resistor from Bourns to obtain a visually clean layout. This durable part has a power rating of 0.25 1/4 W. This product has a resistance value of 390 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This device is made with thick film technology.
安富利:
Res Thick Film 1206 390 Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Paper Tape on Plastic Reel
Verical:
Res Thick Film 1206 390 Ohm 1% 0.25W1/4W ±100ppm/C Pad SMD T/R
Electro Sonic:
Res Thick Film 1206 390 Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD T/R
容差 ±1 %
额定功率 0.25 W
产品系列 CR
电阻 390 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.20 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
厚度 610 µm
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CR1206-FX-3900ELF Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CR1206-FX-3900E 伯恩斯 | 完全替代 | CR1206-FX-3900ELF和CR1206-FX-3900E的区别 |
CRG1206F390R 泰科 | 功能相似 | CR1206-FX-3900ELF和CRG1206F390R的区别 |
1623497-1 泰科 | 功能相似 | CR1206-FX-3900ELF和1623497-1的区别 |
