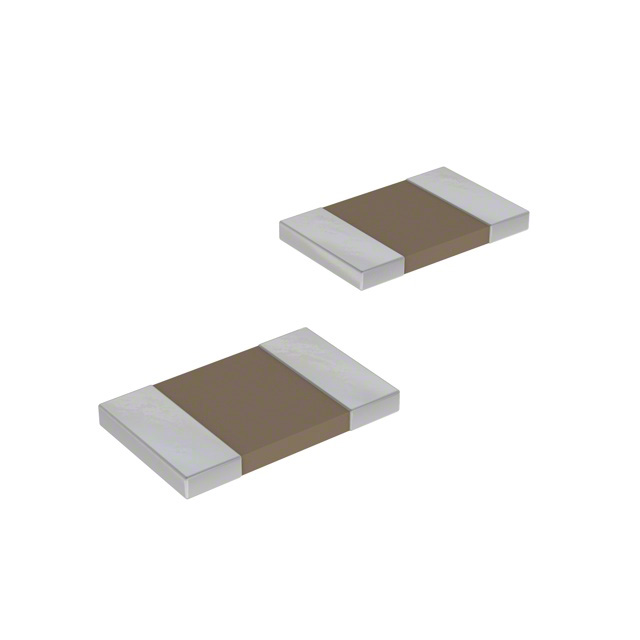

CV201210-1R5K

铁氧体多层片式电感器 Ferrite Multi-Layer Chip Inductors

屏蔽 多层 器 500 毫欧最大 0805（2012 公制）

得捷:
FIXED IND 1.5UH 50MA 500MOHM SMD

艾睿:
Save valuable space on a PCB with this chip CV201210-1R5K surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 1.5u H. This device utilizes multi-layer technology. This product is 2.2 mm long, 1.05 mm tall and 1.45 mm deep. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 60M Hz. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 50m A with a maximum resistance of 500m Ohm.

安富利:
Ind Chip Shielded Multi-Layer 1.5uH 10% 10MHz 45Q-Factor Ferrite 50mA 0805 T/R

Chip1Stop:
Inductor Chip Shielded Multi-Layer 1.5uH 10% 10MHz 45Q-Factor Ferrite 50mA 500mOhm DCR 0805 T/R

Verical:
Inductor RF Shielded Multi-Layer 1.5uH 10% 10MHz 45Q-Factor Ferrite 0.05A 0.5Ohm DCR 0805 T/R

Electro Sonic:
Inductor RF Shielded Multi-Layer 1.5uH 10% 10MHz 45Q-Factor Ferrite 0.05A 0.5Ohm DCR 0805 T/R
