CAY16-39R0F4LF

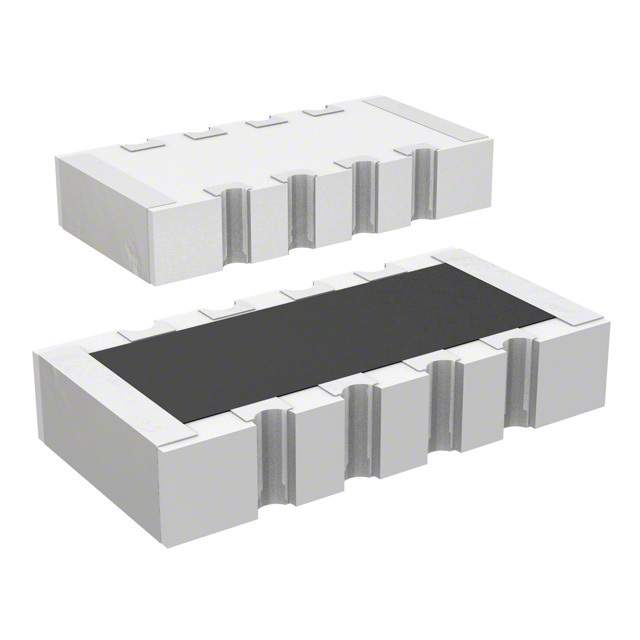

CAY16-39R0F4LF图片1

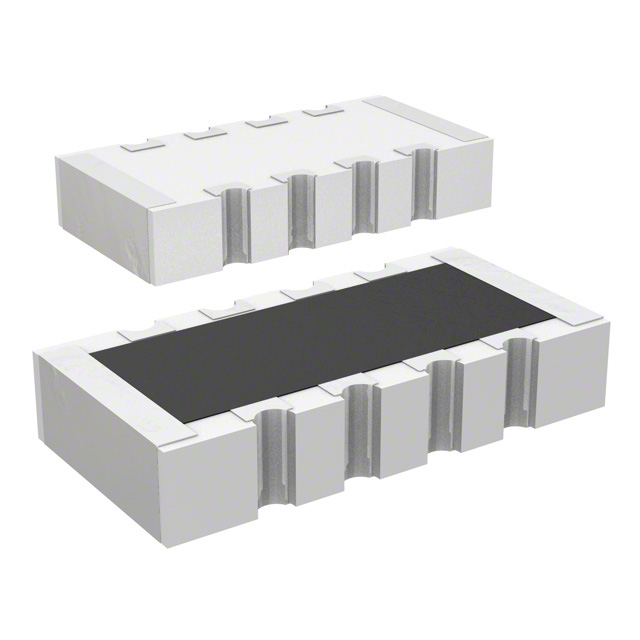

CAY16-39R0F4LF图片2

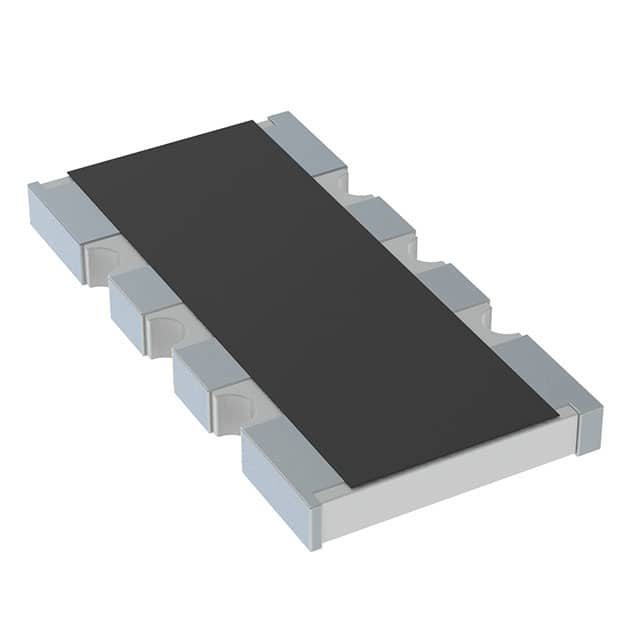

CAY16-39R0F4LF图片3
CAY16-39R0F4LF图片4
CAY16-39R0F4LF图片5
CAY16-39R0F4LF图片6
CAY16-39R0F4LF概述

电阻器网络与阵列 39ohm 1% Convex 4resistors

39 欧姆 ±1% 62.5mW 每元件功率 隔离 4 器网络,阵列 ±200ppm/°C 1206(3216 公制),凸面,长边端子


立创商城:
39Ω ±1%


得捷:
RES ARRAY 4 RES 39 OHM 1206


艾睿:
Create more space in your circuit design by using this CAY16-39R0F4LF resistor array developed by Bourns that packs multiple resistors into one IC chip. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 39 Ohm. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. The CAY16-39R0F4LF part has a convex termination style. It has a tolerance of 1%. This device is made with thick film technology.


安富利:
Res Thick Film Array 39 Ohm 1% ISOL Molded 8-Pin 1206 Convex SMD Paper T/R


Electro Sonic:
Res Thick Film Array 39 Ohm 1% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Convex SMD T/R


CAY16-39R0F4LF中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.25 W

电阻 39 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.5 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 -

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买CAY16-39R0F4LF
型号: CAY16-39R0F4LF
制造商: Bourns J.W. Miller 伯恩斯
描述:电阻器网络与阵列 39ohm 1% Convex 4resistors
替代型号CAY16-39R0F4LF
型号/品牌 代替类型 替代型号对比

CAY16-39R0F4LF

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

CAY16-39R0F4

伯恩斯

完全替代

CAY16-39R0F4LF和CAY16-39R0F4的区别
