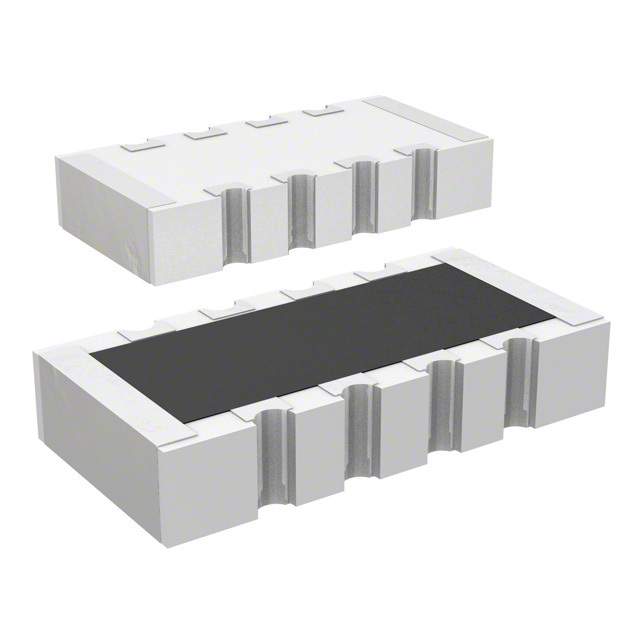

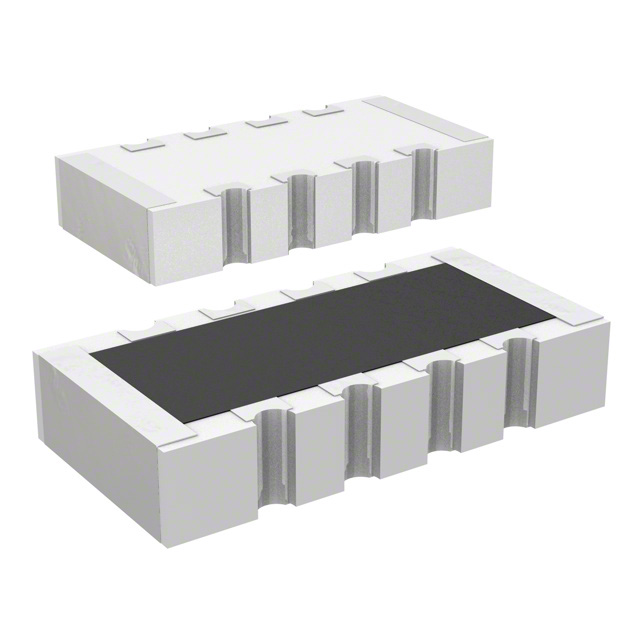

CAY16-750J4LF

固定阵列电阻, 75 ohm, CAY16 Series, 4 元件, 隔离, 1206 [3216公制], 8 引脚

75 欧姆 ±5% 62.5mW 每元件功率 隔离 4 器网络，阵列 ±200ppm/°C 1206（3216 公制），凸面，长边端子

立创商城:
75Ω ±5%

得捷:
RES ARRAY 4 RES 75 OHM 1206

e络盟:
固定阵列电阻, 75 ohm, CAY16 Series, 4 元件, 隔离, 1206 [3216公制], 8 引脚

艾睿:
Downsize multiple resistors onto a single chip with the CAY16-750J4LF resistor array, developed by Bourns. This product&s;s 4 resistors have a value of 75 Ohm. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 5%. The CAY16-750J4LF part has a convex termination style. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. This product&s;s terminal pitch is 0.8 mm.

安富利:
Res Thick Film Array 75 Ohm 5% ISOL Molded 8-Pin 1206 Convex SMD Paper T/R

Chip1Stop:
Res Thick Film Array 75 Ohm 5% 0.25W1/4W ±200ppm/℃ ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R

Verical:
Res Thick Film Array 75 Ohm 5% 0.25W1/4W ±200ppm/C ISOL 8-Pin 12064 X 0603 Convex SMD T/R

Electro Sonic:
Res Thick Film Array 75 Ohm 5% 0.25W1/4W ±200ppm/°C ISOL 8-Pin 12064 X 0603 Convex SMD T/R
