CR-1620/BN

CR 系列CR 系列锂纽扣电池可提供长存储寿命，特别适用于手表、存储器支持和相机等项目。 所有 RS 钮扣电池均不含汞。**主要特点** 不可充电的锂钮扣电池 CR 系列适合间歇性高负载应用 存储寿命长 常用于手表、计算器和相机等应用 ### 钮扣锂电池本系列中所有电池的电压为 3V。所有类型的技术参数 --- 类型 | 直径 mm | 高度mm CR1025 | 10.0 | 2.5 CR1216 | 12.5 | 1.6 CR1220 | 12.5 | 2.0 BR1225 | 12.5 | 2.5 CR1612 | 16 | 1.2 CR1616 | 16 | 1.6 CR1620 | 16 | 2.0 CR1632 | 16 | 3.2 CR2016 | 20 | 1.6 CR2025 | 20 | 2.5 BR/CR2032 | 20 | 3.2 BR2325 | 23 | 2.5 BR/CR2330 | 23 | 3.0 CR2354 | 23 | 5.4 CR2450 | 24.5 | 5.0 CR2477 | 24.5 | 7.7 CR3032 | 30 | 3.2

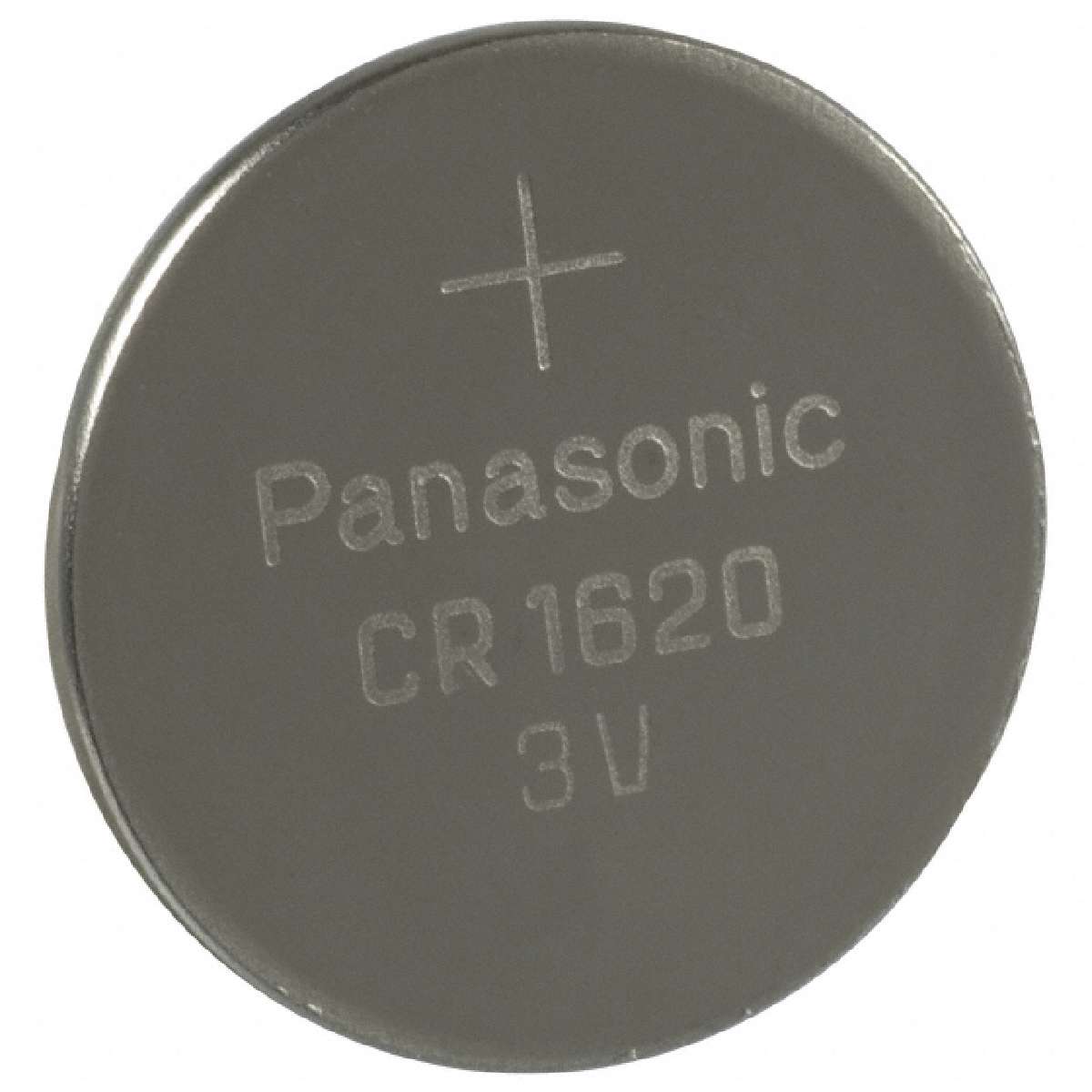

The is a 1620 3V/75mAh coin-cell Non-rechargeable Battery features a lithium manganese dioxide technology and pressure contact terminals. Coin type lithium battery is high energy, high reliability batteries for a variety of applications. The full 3V in these high energy density batteries is about twice that of conventional dry batteries. coin type lithium batteries are manganese dioxide lithium batteries CR-series for uses that require high voltage and strong load pulse characteristics. The CR lithium primary coin cells contain per chlorate over the limit.

.

High voltage of 3 volts - Twice that of conventional dry batteries

.

Extremely small self-discharge for long service and shelf life

.

Compact and lightweight

.

Extremely high energy density per unit weight

.

Extremely strong load pulse characteristics manganese dioxide lithium

.

-30 to 60°C Operating temperature range
