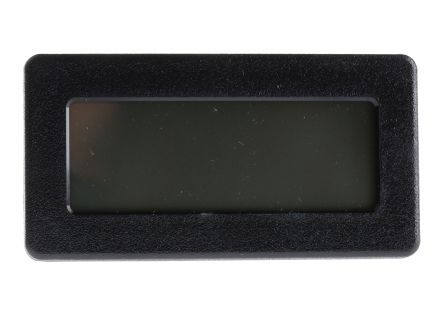

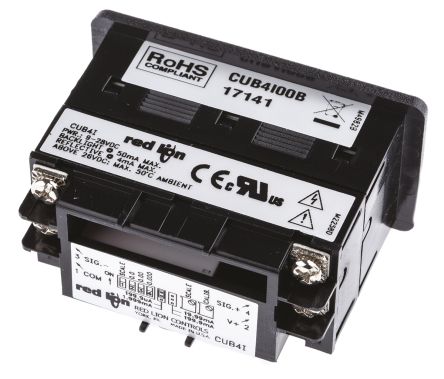

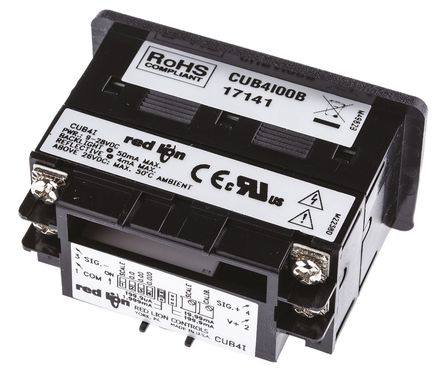

CUB4 I - digital ammeter, LCD, 15 mm character height3.5-digit, 15-mm extra bright display Auto offset correction Decimal point can be freely selected Potentiometer for flexible scaling Protection rating IP65 Four input ranges: | 199.9 μA Ri=1 kΩ, 1.999 mA Ri=100 Ω, 19.99 mA Ri=10 Ω, 199.9 mA Ri=1 Ω; can be selected via jumper. Protection: 199 μA to 19.99 mA range: 10 x max. Input value. 199.9 mA range: 1 A ---|--- Display capacity: | Standard LCD or backlit with red or green background. Minus - and overrun displayed. Decimal point can be set using DIP switch Accuracy: | 199.9 μA, 1999 mA, 19.99 mA. Range: ±0.1% + 1 digit. 199.9 mA range: ±0.15% + 1 digit Power supply: | Standard LCD display: 9 to 28 V dc, max. 4 mA Backlit display: 9 to 28 V dc, max. 50 mA Measuring rate: | 2.5 measurements/s Stabilisation time: | 1.5 s Housing: | High-impact plastic housing. Dimensions W x H x D: | 75 x 39 x 50 mm Panel cut-out: | 68 x 33 mm DIN, fastened with mounting frame Connection: | Screw connections Cross-reference to manufacturer"s part number --- Stock no. | Manufacturer part no. | Description 388-5488 | CUB4I000 | Hrs LCD current digital display 388-5494 | CUB4I010 | Green LCD current digital display 388-5545 | CUB4I020 | Red LCD current digital display ### 认可UL, CSA### 可配置过程指示器

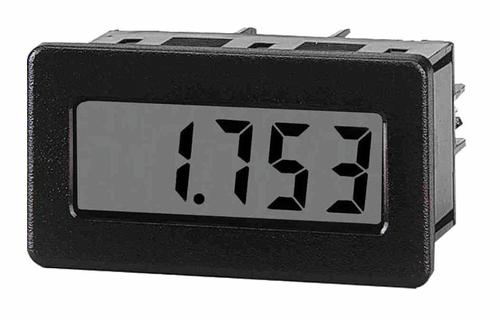

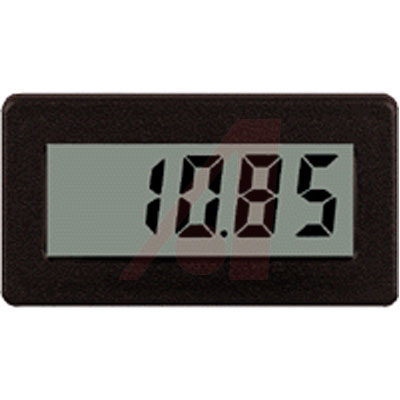

The CUB4 panel meters are manufactured using the latest technology for high quality, compact, affordable instrumentation for use in industrial environments. Each unit has a 3.5 digit LCD display with 0.6" high digits and a DIP switch selectable decimal point. The displays are available in positive image reflective black digit, reflective background or negative image trans-missive illuminated digits, dark background with red backlight.
**CUB4V/I/LP Features:**
* Panel Cutout: 2.68" × 1.30"
* Reflective, Red or Green with Backlighting
* 0-199.9 μA Through 199.9 mA DC
* 0-199.9 mV Through 199.9 VDC
* NEMA 4X/IP65
