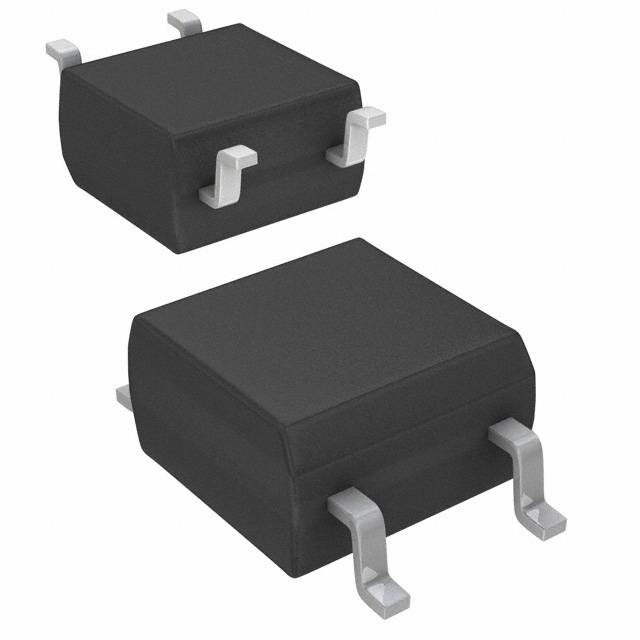

CPC1004NTR

CPC1004N 系列 单刀单掷 300 mA 100 V 单通道 固态继电器 表面贴装 - SOIC-4

Description

CPC1004N is a miniature, low-voltage, low on-resistance 1-Form-A DC solid state relay in a 4-pin SOP package. The relay uses optically coupled MOSFET technology to provide 1500Vrms of input/output isolation. The efficient MOSFET switch and photovoltaic die use Clare’s patented OptoMOS architecture. The optically coupled input is controlled by a highly efficient GaAIAs infrared LED.

Features

• Small 4 Pin SOP Package

• Low Drive Power Requirements TTL/CMOS Compatible

• No Moving Parts

• High Reliability

• Arc-Free With No Snubbing Circuits

• 1500Vrms Input/Output Isolation

• No EMI/RFI Generation

• Machine Insertable, Wave Solderable

• Tape & Reel Version Available

Applications

• Instrumentation

  • Multiplexers

  • Data Acquisition

  • Electronic Switching

  • I/O Subsystems

  • Meters Watt-Hour, Water, Gas

• Medical Equipment—Patient/Equipment Isolation

• Security Systems

• Aerospace

• Industrial Controls

• Reed Relay Replacement
