0603 1.8pF ±0.1pF 50V C0G
1.8pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0603 1608 Metric
得捷:
CAP CER 1.8PF 50V NP0 0603
艾睿:

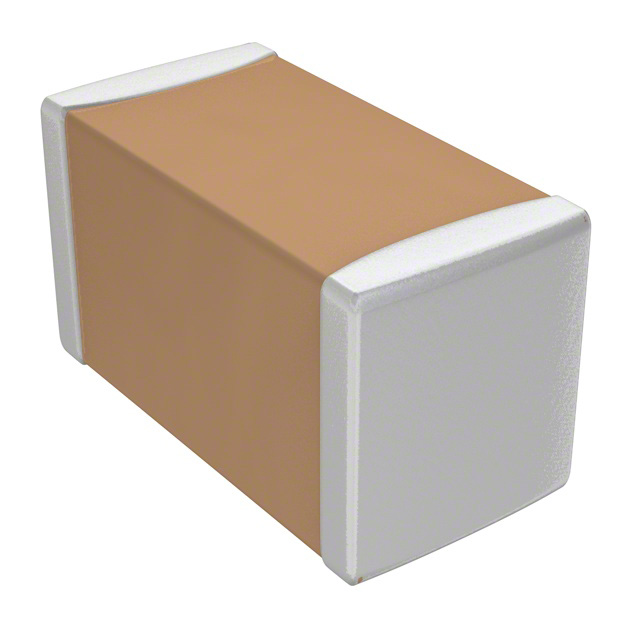

This CL10C1R8BB8NNND multilayer ceramic capacitor from Samsung Electro-Mechanics has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 1.8pF.
Verical:
Cap Ceramic 1.8pF 50V C0G 0.1pF Pad SMD 0603 125C T/R
儒卓力:
**KC 1,8pF 0603 0,10pF 50V NP0 **
额定电压DC 50.0 V
电容 1.8 pF
容差 ±0.1 pF
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
CL10C1R8BB8NNND Samsung 三星 | 当前型号 | 当前型号 |
CL10C1R8BB8NNNC 三星 | 完全替代 | CL10C1R8BB8NNND和CL10C1R8BB8NNNC的区别 |
CC0603BRNPO9BN1R8 国巨 | 类似代替 | CL10C1R8BB8NNND和CC0603BRNPO9BN1R8的区别 |
CL10C1R8CB8NNNC 三星 | 类似代替 | CL10C1R8BB8NNND和CL10C1R8CB8NNNC的区别 |
