CRCW040224R9FKTD

CRCW040224R9FKTD图片1
CRCW040224R9FKTD图片2
CRCW040224R9FKTD图片3
CRCW040224R9FKTD图片4
CRCW040224R9FKTD图片5
CRCW040224R9FKTD概述

0402 24.9Ω ±1% 0.063W1/16W ±100ppm/℃

CRCW Series 0402 0.063 W 24.9 Ohm ±1% ±100 ppm/K SMT Thick Film Chip Resistor


立创商城:
24.9Ω ±1% 62.5mW


艾睿:
This is a CRCW040224R9FKTD fixed single surface-mount resistor from Vishay. This dependable part has a power rating of 0.063 1/16 W. This product has a resistance value of 24.9 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This device is made with thick film technology.


Verical:
Res Thick Film 0402 24.9 Ohm 1% 0.063W1/16W ±100ppm/C Pad SMD Automotive T/R


CRCW040224R9FKTD中文资料参数规格
技术参数

额定电压DC 50.0 V

额定功率 0.063 W

产品系列 Vishay_Dale

电阻 24.9 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1.00 mm

宽度 500 µm

高度 0.35 mm

封装公制 1005

封装 0402

物理参数

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

CRCW040224R9FKTD引脚图与封装图

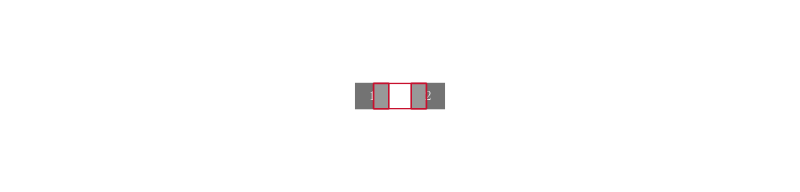

CRCW040224R9FKTD引脚图

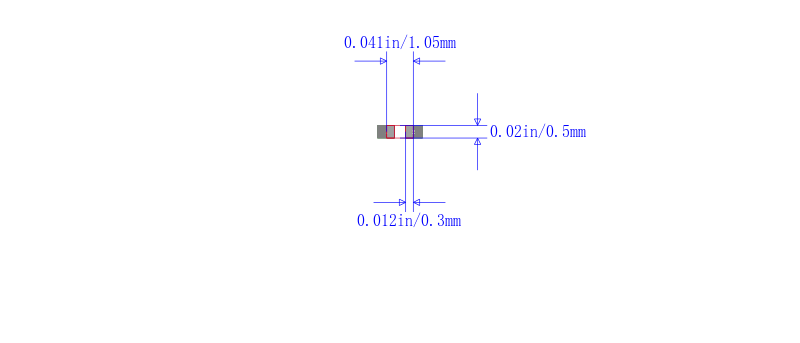

CRCW040224R9FKTD封装图
CRCW040224R9FKTD封装焊盘图
在线购买CRCW040224R9FKTD
型号: CRCW040224R9FKTD
制造商: VISHAY 威世
描述:0402 24.9Ω ±1% 0.063W1/16W ±100ppm/℃
