数字晶体管( BRT ) PNP硅表面贴装晶体管与单片偏置电阻网络 Digital Transistors BRT PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network
PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network

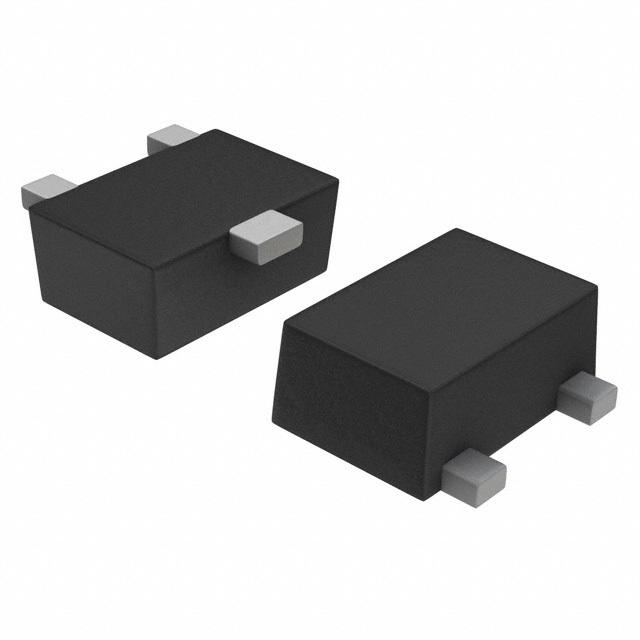

This new series of digital transistors is designed to replace a single device and its external resistor bias network. The digital transistor contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The digital transistor eliminates these individual components by integrating them into a single device. The use of a digital transistor can reduce both system cost and board space. The device is housed in the SOT−723 package which is designed for low power surface mount applications.
• Simplifies Circuit Design
• Reduces Board Space
• Reduces Component Count
• The SOT−723 Package can be Soldered using Wave or Reflow.
• Available in 4 mm, 8000 Unit Tape & Reel
• These are Pb−Free Devices
额定电压DC -50.0 V
额定电流 -100 mA
无卤素状态 Halogen Free
极性 PNP
耗散功率 0.6 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 80 @5mA, 10V
最大电流放大倍数hFE 80
额定功率Max 260 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 600 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-723-3
长度 1.2 mm
宽度 0.8 mm
高度 0.5 mm
封装 SOT-723-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
