DC9020B

SC-Dust SmartMesh IP RF Certified Eval/Dev Manager MMCX antenna connector, 100 mote capacity

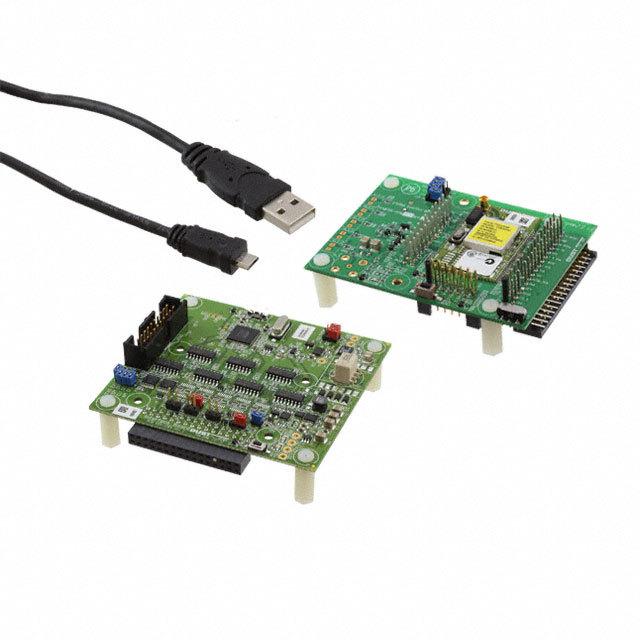

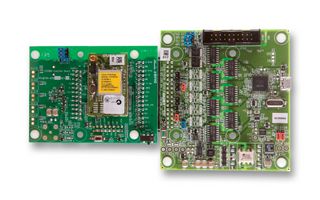

The is a SmartMesh IP RF Evaluation/Development Network Manager anchors the SmartMesh IP product line. It provides core networking functionality, enabling the network to achieve unsurpassed levels of resilience, reliability and scalability, with advanced network management and comprehensive security features. The board incorporates the LTP5902-IPR SmartMesh IP embedded manager with an MMCX antenna connector and provides USB connection for both power and software access to the manager API UART port. Optionally, the DC9006 Eterna interface card can be removed to allow 3V level access to the LTP5902-IPR signals from embedded processors.
