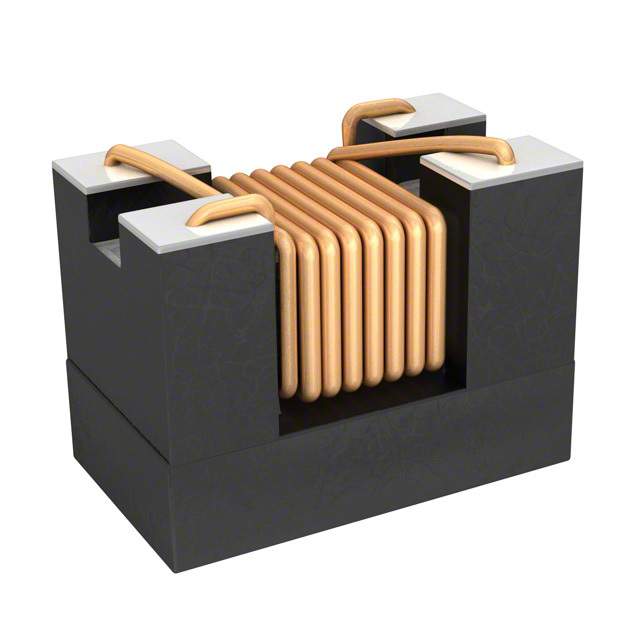

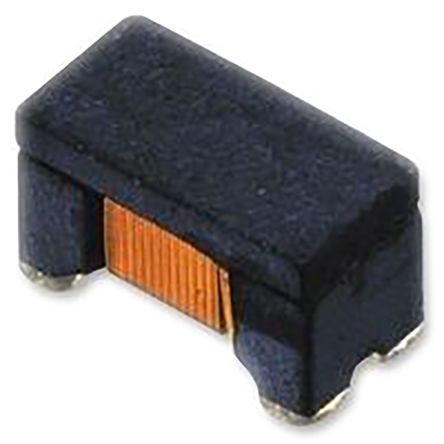

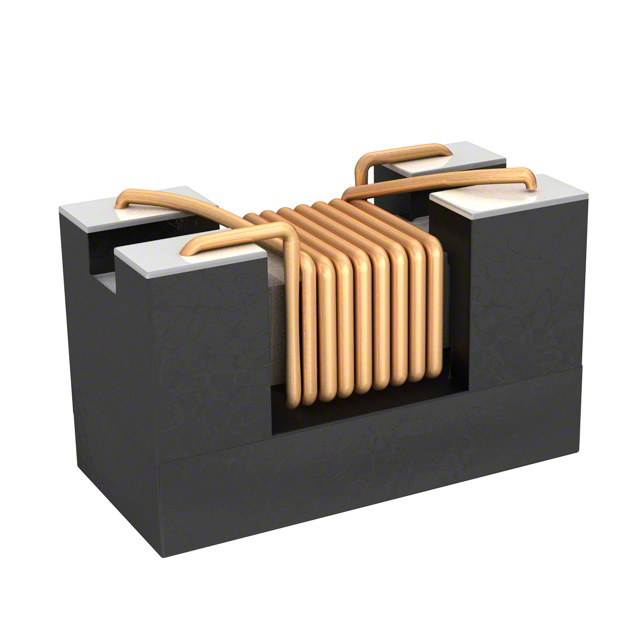

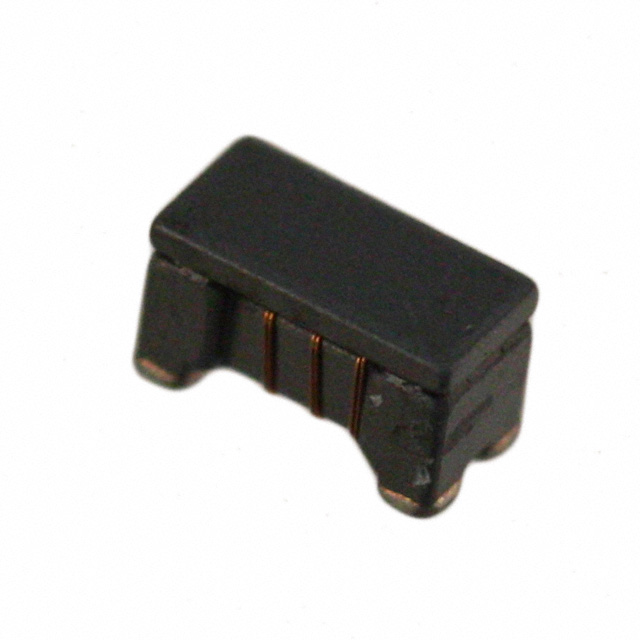

DLW31SN102SQ2L

MURATA  DLW31SN102SQ2L  扼流圈, 共模, 阻抗1000Ω, 100MHz

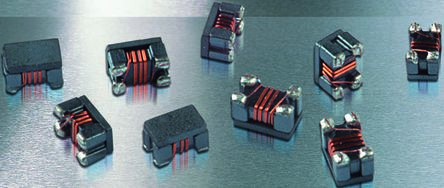

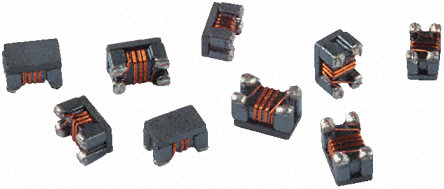

Murata 1206 DLW31S 系列 SMD 共模

DLP31S series common mode choke coil chips with high impedance in a small package. The DLP31S series utilise ferrite material technology and film processing technology to give excellent performance at high frequency ranges and is suitable for differential signal line application.

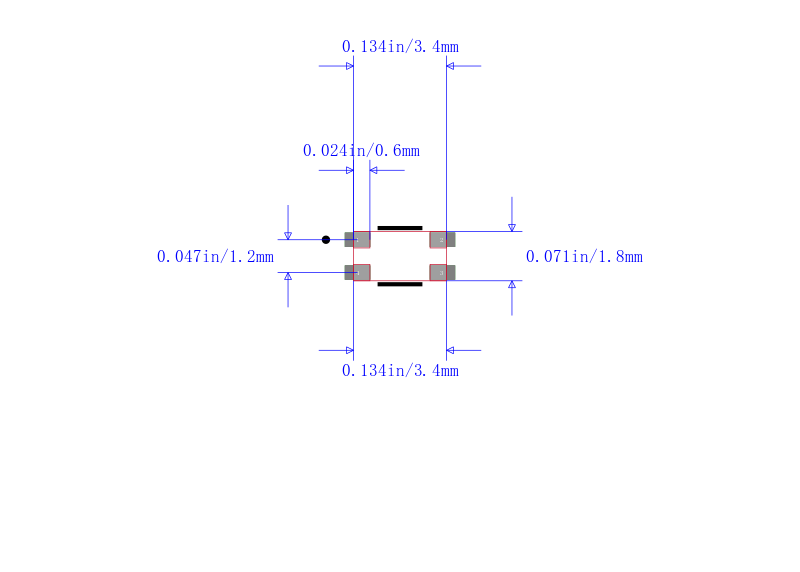

Small size, low profile, SMD. 3.2x1.6x1.15mm Tolerance: +-0.15mm

High common mode impedance 550 ohm at 100MHz typ. in small size

Suppresses high frequency noise that was unable to be suppressed with existing common mode choke coils

Suitable for differential signal lines like USB, because DLP31S does not provide distortion to high speed signal transmission due to its high coupling coupling coefficient: 0.98 min.

### Applications

USB lines of PCs, peripheral equipment

LVDS lines of Note-PCs, LCDs

USB lines of digital AV equipment such as digital cameras
