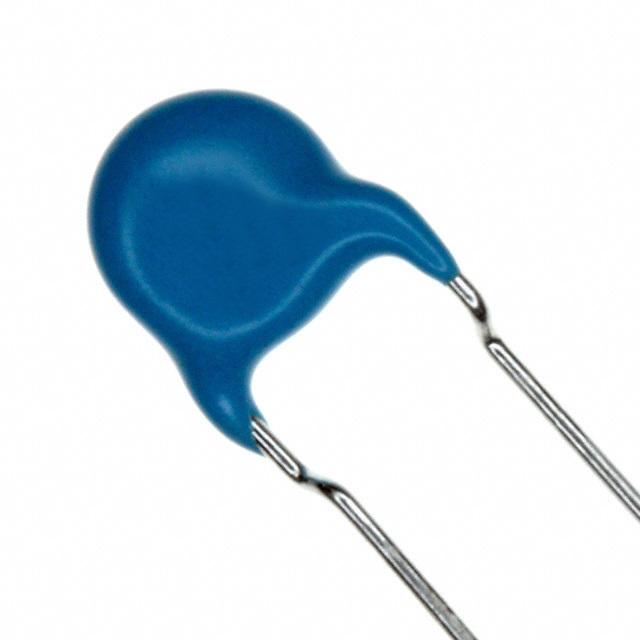

82pF 2kV SL Φ7.0mm
By adding one of these ceramic disc single-layer ceramic disc capacitors to your circuit, you can ensure high quality operation at a lower cost. It can withstand a voltage of 2000 VDC. This high frequency capacitor has a maximum operating temperature of 125 °C. This product is 5Max mm deep. The DEA1X3D820JA2B high frequency capacitor has a radial termination style. Its capacitance value is 82pF. It has a tolerance of 5%. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.
额定电压DC 2 kV
电容 82 pF
容差 ±5 %
电介质特性 SL
工作温度Max 125 ℃
工作温度Min -25 ℃
额定电压 2000 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
引脚间距 5 mm
长度 7 mm
宽度 5 mm
高度 5.0 mm
直径 7.00 mm
脚长度 25.0 mm
封装 Radial, Disc
引脚间距 5 mm
厚度 5 mm
材质 SL
工作温度 -25℃ ~ 125℃
温度系数 -1000ppm/℃ ~ 350ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
