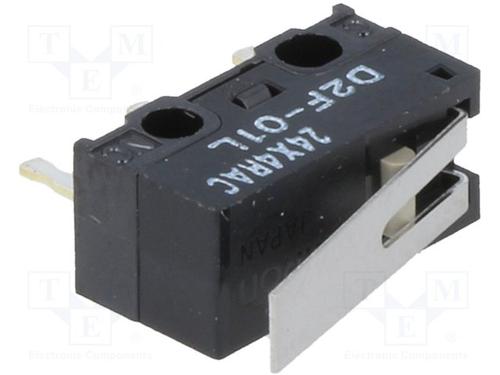

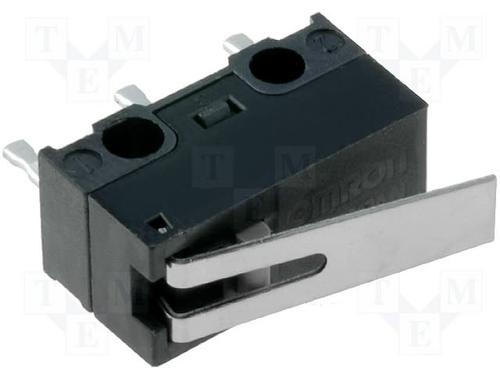

OMRON ELECTRONIC COMPONENTS D2F-01L 微动开关, D2F系列, SPDT, 通孔, 100 mA, 125 VAC, 30 VDC
超小型微动
扣合作用超小型微动开关,特别适用于家用电器、音响设备和通信设备。
符合 RoHs
触点额定值:银触点在 125V 交流时为 3A,金触点在 30V 直流时为 0.1A
单刀双掷触点配置
扣合作用
**认证:UL 和 CSA**
得捷:
SWITCH SNAP ACT SPDT 100MA 30V
立创商城:
150gf 30V 0.1A
欧时:
Omron D2F-01L 单刀双掷 - 常开/常闭 摆杆 微动开关, 100 mA @ 30 V 直流
艾睿:
Only this D2F-01L snap-action switch from Omron can open or close your circuit at the fastest speed. This device has a maximum current rating of 0.1 A @ 30VDC. It has a SPDT configuration. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The D2F-01L snap action switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 13.95 mm long, 11.5 mm tall and 5.8 mm deep.
Allied Electronics:
Switch; Snap Action; 3 A; 125 VAC; Snap Action; 80 g; 0.55 in.; -25 to +65 °
Jameco:
SPDT ON-ON Ultra Subminiature Basic Switch
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 30VDC 0.78N Thru-Hole
TME:
Microswitch; with lever; SPDT; 0.1A/30VDC; ON-ON; Positions:2
Verical:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 0.1A 30VDC 0.78N Thru-Hole PC Pins
Newark:
Microswitch, Ultra Subminiature, Hinge Lever, SPDT, Solder, 100 mA, 30 VDC
MASTER:
Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 30VDC 0.78N Thru-Hole
Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 30VDC 0.78N Thru-Hole
Win Source:
SWITCH SNAP ACTION SPDT 100MA
额定电压DC 30 V
接触器类型 Straight Lever
额定电流 100mA DC
绝缘电阻 100 MΩ
触点类型 SPDT
接触电阻 30.0 mΩ
触点额定电流 100mA @30VDC
额定电流Max 0.1A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 30 VDC
安装方式 Through Hole
封装 100
长度 12.8 mm
宽度 5.8 mm
高度 11.5 mm
封装 100
触点材质 Gold Alloy
工作温度 -25℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Automation & Process Control, 电源管理, 工业, 自动化与过程控制, Power Management, Industrial, Power Management, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536507000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
D2F-01L Omron 欧姆龙 | 当前型号 | 当前型号 |
DG23-B1LA ZF Electronics | 类似代替 | D2F-01L和DG23-B1LA的区别 |
ZMA00A150L04PC C&K Components | 功能相似 | D2F-01L和ZMA00A150L04PC的区别 |
D2FL 欧姆龙 | 功能相似 | D2F-01L和D2FL的区别 |
