MURATA POWER SOLUTIONS DMS-30PC-4/20S-24BS-I-C. 电流表, 直流, 4-20mA

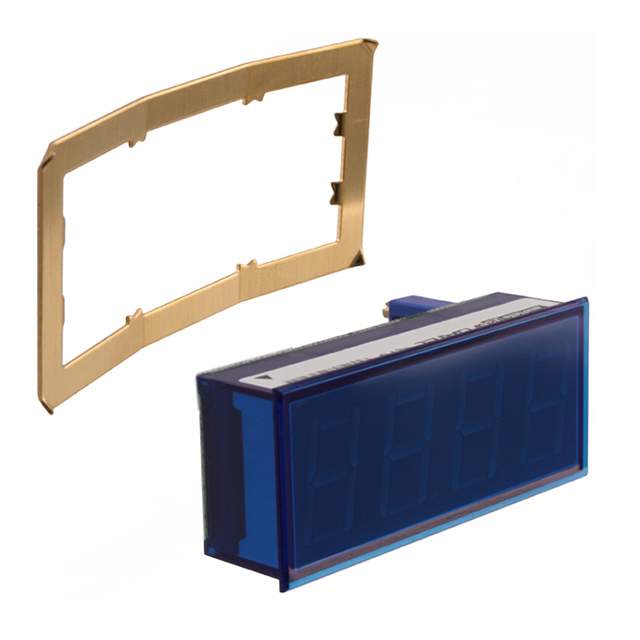

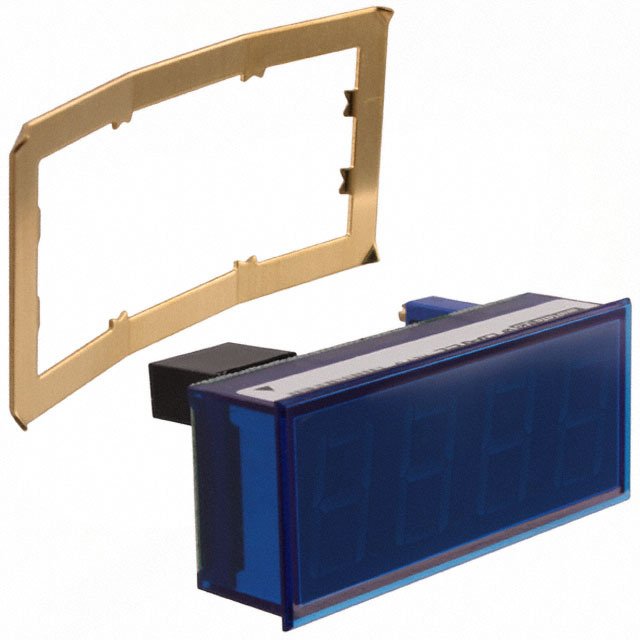

The is a 3-1/2-digit high-intensity blue LED Panel Meter with isolated supply. It offers an outstanding combination of electrical performance, display readability, ease-of-use and long-term reliability. This meter is constructed using Murata Power Solutions super-reliable, field-proven epoxy-encapsulated DMS-30PC digital voltmeter. The decimal point and range-change settings are made on a gold-plated, vibration-resistant, DIP switch and there is no cumbersome solder gap or jumpers to contend with connections to the current loop and the power source are both made on a rugged, 4-position, screw-type terminal block. It is user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long-lead-time, factory "specials" especially in applications requiring several different-range meter.
电源电压DC 21.6V min
供电电流 60 mA
输入电流 4mA ~ 20mA
采样率 2.50 Hz
高度尺寸特征 14.2 mm
工作温度Max 60 ℃
工作温度Min 0 ℃
电源电压 24 VDC
电源电压Max 24 V
电源电压Min 21.6 V
安装方式 Screw Terminals, Panel
长度 26 mm
宽度 55 mm
高度 23 mm
材质 Polycarbonate
重量 28.12 g
工作温度 0℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, Industrial, Metering
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DMS-30PC-4/20S-24BS-I-C muRata 村田 | 当前型号 | 当前型号 |
DMS-30PC-4/20S-24RS-I-C 村田 | 类似代替 | DMS-30PC-4/20S-24BS-I-C和DMS-30PC-4/20S-24RS-I-C的区别 |
