18LF8722 Microcontroller Development Tool 3840B RAM 128KB/1Mb EEPROM/ROM Linux 2.40/MAC OS-8/MAC OS-9/MAC OS-X/Win 98/Win 98 SE/Win 2000/Win CE/Win ME/Win XP

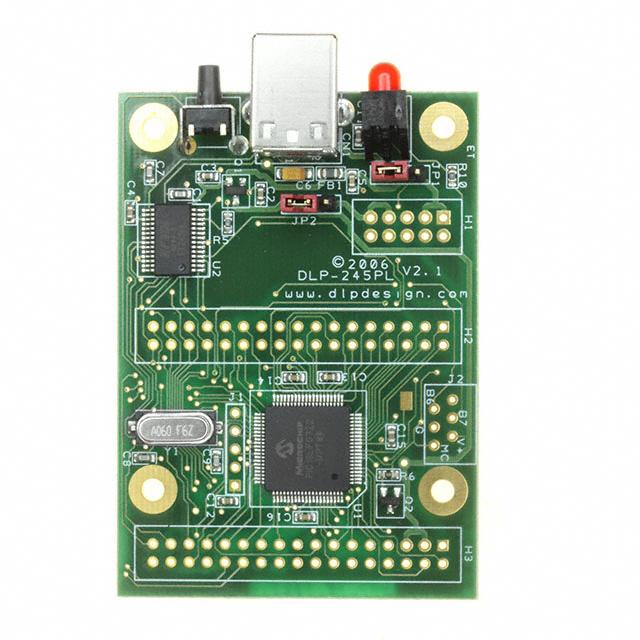

The combines the same lead-free USB interface used in the DLP-USB245M-G module with a Microchip PIC microcontroller to form a rapid development tool. The 18LF8722 microcontroller is preprogrammed with basic functionality for accessing the port pins and can be reprogrammed with user hex code via a 5-pin header that is compatible with Microchip’s MPLAB ICD2 device programmer/debugger.
**Features:**
* Send/receive data over USB to a host computer at up to 2 megabits per second
* 50 digital I/O lines 16 can be configured as A/D inputs plus the 8-bit data bus available for interfacing to user electronics
* Microchip 18LF8722 processor with 128K FLASH Program ROM, 3840 bytes RAM, 1024 bytes of data EEPROM and a multi-channel, 10-bit A/D converter
* “Token I/O” code preprogrammed into the 18LF8722’s FLASH for basic port pin input/output capability including access to the A/D, EEPROM, and external digital temperature sensors. ROM can be erased and reprogrammed with a device programmer
* No in-depth knowledge of USB is required as all USB protocol is handled automatically by the on-board FT245RL and its support circuitry
* Royalty-free device drivers eliminate the need for USB driver development in most cases
