DPO4VID

Tektronix MSO/DPO 3000/4000 Serial Triggering and Analysis Application ModulesSerial triggering and analysis modules enable triggering on packet level information together with analytical tools such as digital views of the signal, bus views, packet decoding, search tools and packet decode tables with time stamp information.### Serial Triggering and AnalysisEmbedded: DPO4EMBD 728-6712 ; DPO3EMBD 727-6667 : Serial Bus l2C, SPl Computer: DPO4COMP 728-6703 ; DPO3COMP 727-6664 : Serial Bus RS-232/422/485/UART Automotive: DPO4AUTO 728-6704 ; DPO3AUTO 727-6655 : Serial Bus CAN, LIN Extended Automotive: DPO4AUTOMAX 728-6709 : Serial Bus CAN, LIN, FlexRay Audio: DPO4AUDIO 727-6695 ; DPO3AUDIO 727-6651 : Serial Bus l2C, LJ, RJ, TDM Aerospace: DPO4AERO 728-6737 : Serial Bus MIL-STD-1553 Ethernet: DPO4ENET 728-6734 : 10BASE-T, 100BASE-TX USB: DPO4USB 728-6715 : USB 2.0 ### Application SupportLimit and Mask Test: DPO4LMT 728-6731 : ITU-T, ANSI-T1.102, USB Standards, Custom User-defined Masks Video: DPO4VID 728-6728 ; DPO3VID 728-6670 : Custom video and HDTV video signals Power Analysis: DPO4PWR 728-6719 ; DPO3PWR 727-6661 : Quality, Current Harmonics, Switching Loss, Safe Operating Area, Slew Rate, Modulation, Ripple ### 混合信号示波器

The optional MDO4TRIG application module provides advanced RF triggering. This module enables the RF input power level to be used as a source for Sequence, Pulse Width, Timeout, Runt, and Logic trigger types.

For example, you can trigger on a RF pulse of a specific length or use the RF channel as an input to a logic trigger, enabling the oscilloscope to trigger only when the RF is on while other signals are active.

欧时:
DPO / MSO4000 series1 GHz, 500 MHz and 350 MHz bandwidth models 2- and 4-channel models 16 digital channels MSO4000 10 mega sample record length on all channels 35,000 wfm/s maximum waveform capture rate Wave Inspector® controls for unprecedented efficiency in waveform analysis I2C, SPI, CAN and RS-232 serial triggering and analysis options 10.4 in. 264 mm XGA colour display Reduced size and weight: only 137 mm deep and 5 kg USB and CompactFlash on front panel for quick and easy data storage Built-in Ethernet port Analysis software and Plug & Play connectivity USB 2.0 port for direct PC control of the oscilloscope using USBTMC Suite of advanced triggers e*Scope® remote control and display Interoperable with Tektronix logic analysers The TekVPI™ probe interface supports active, differential and current probes for the automatic adjustment of scale and units of measurementDPO4AUTO: Automotive serial triggering and analysis module. Enables triggering on packet level information for CAN buses as well as the use of analytical tools such as digital views of the signal, bus views, packet decoding, search tools and packet decode tables with timestamp information DPO4EMBD: Embedded serial triggering and analysis module. Enables triggering on packet level information for I2C and SPI buses as well as the use of analytical tools such as digital views of the signal, bus views, search tools and packet decode tables with timestamp information. SPI is available on four-channel models onlyApplication Modules### 随附P6139A 10x 500 MHz passive probe for analogue channels, front cover, CompactFlash memory card; ≥32 MB, user guide, CD containing documentation, OpenChoice® Desktop software, NI LabVIEW SignalExpress™ Edition LE software, calibration certificate stating traceability to national meteorological institutions and ISO9001 certification, power cable, accessory bag. MSO models also include a 16-channel P6516 logic probe with the appropriate accessory kit

贸泽:

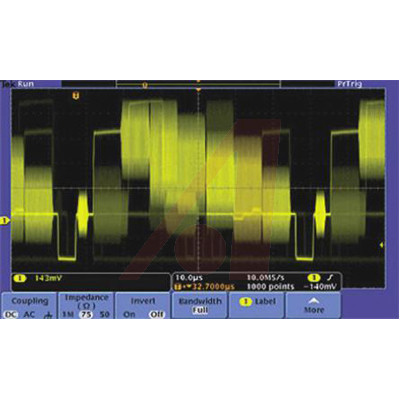

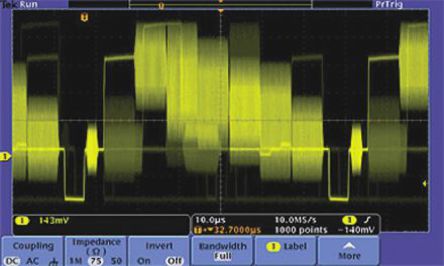

Benchtop Oscilloscopes HDTV and Custom Video Triggering

Allied Electronics:
HDTV and Custom Video Trigger Module for the DPO4000/MSO4000 Series

Newark:
Oscilloscope Module, HDTV & Custom Non-standard Video Triggering & Analysis
