DPO4EMBD

Tektronix MSO/DPO 3000/4000 Serial Triggering and Analysis Application ModulesSerial triggering and analysis modules enable triggering on packet level information together with analytical tools such as digital views of the signal, bus views, packet decoding, search tools and packet decode tables with time stamp information.### Serial Triggering and AnalysisEmbedded: DPO4EMBD 728-6712 ; DPO3EMBD 727-6667 : Serial Bus l2C, SPl Computer: DPO4COMP 728-6703 ; DPO3COMP 727-6664 : Serial Bus RS-232/422/485/UART Automotive: DPO4AUTO 728-6704 ; DPO3AUTO 727-6655 : Serial Bus CAN, LIN Extended Automotive: DPO4AUTOMAX 728-6709 : Serial Bus CAN, LIN, FlexRay Audio: DPO4AUDIO 727-6695 ; DPO3AUDIO 727-6651 : Serial Bus l2C, LJ, RJ, TDM Aerospace: DPO4AERO 728-6737 : Serial Bus MIL-STD-1553 Ethernet: DPO4ENET 728-6734 : 10BASE-T, 100BASE-TX USB: DPO4USB 728-6715 : USB 2.0 ### Application SupportLimit and Mask Test: DPO4LMT 728-6731 : ITU-T, ANSI-T1.102, USB Standards, Custom User-defined Masks Video: DPO4VID 728-6728 ; DPO3VID 728-6670 : Custom video and HDTV video signals Power Analysis: DPO4PWR 728-6719 ; DPO3PWR 727-6661 : Quality, Current Harmonics, Switching Loss, Safe Operating Area, Slew Rate, Modulation, Ripple ### 混合信号示波器

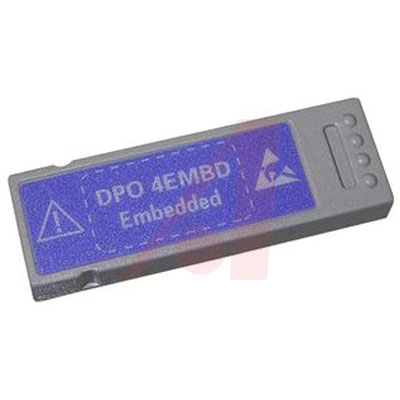

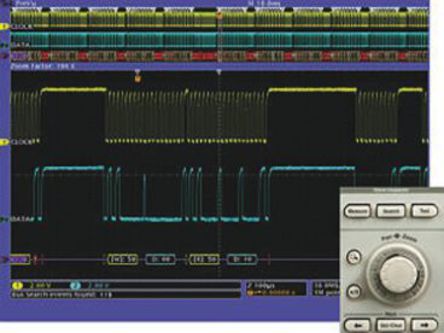

The is an Embedded Serial Triggering and Analysis Module for use with MSO/DPO4000B series oscilloscopes. Enables triggering on packet-level information on I²C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools and packet decode tables with timestamp information.
