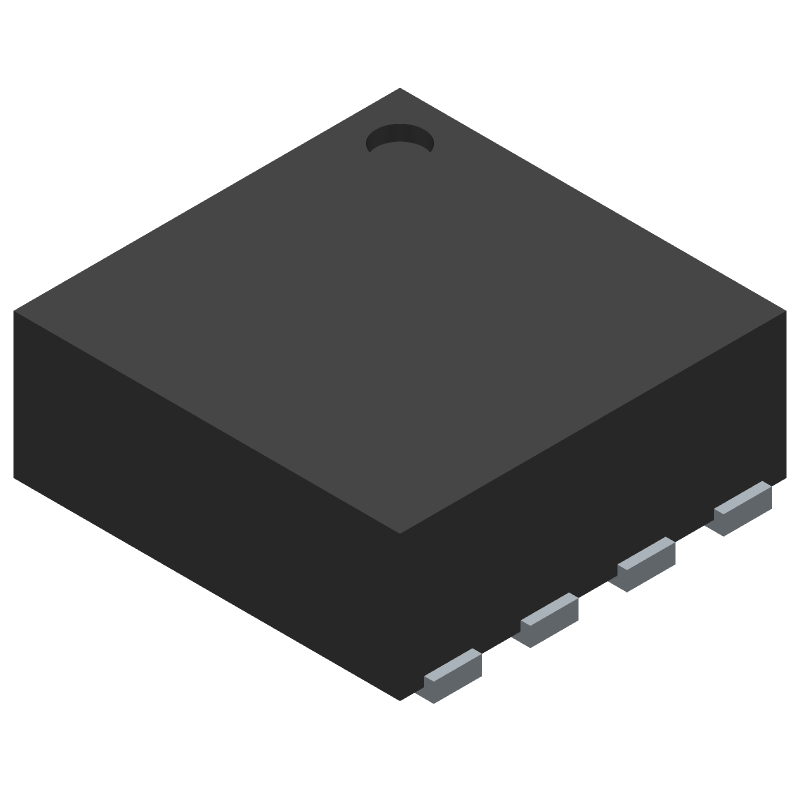

马达/运动/点火控制器和驱动器 1A Low-Voltage H-Bridge Driver 8-WSON -40 to 85
The DRV8837C device provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one DC motor or other devices like solenoids. The output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages.
The DRV8837C device can supply up to 1 A of output current. The device operates on a motor power supply voltage from 0 to 11 V, and control logic can operate on 1.8-V to 5-V rails.
The DRV8837C device has a PWM IN/IN input interface.
Internal shutdown functions are provided for overcurrent protection, short circuit protection, undervoltage lockout, and overtemperature.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
DRV8837CDSGR TI 德州仪器 | 当前型号 | 当前型号 |
DRV8837CDSGT 德州仪器 | 完全替代 | DRV8837CDSGR和DRV8837CDSGT的区别 |
