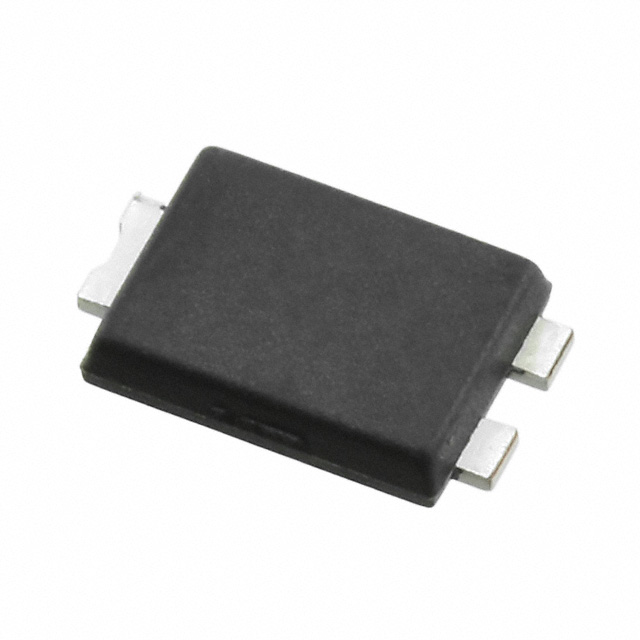

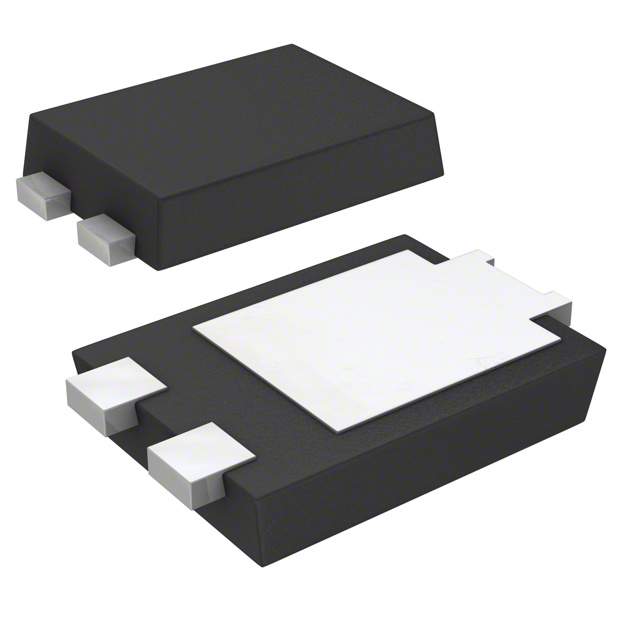

Trans GP BJT PNP 20V 8A 3000mW Automotive 3Pin3+Tab PowerDI 5 T/R
- 双极 BJT - 单 PNP 20 V 8 A 176MHz 3 W 表面贴装型 PowerDI™ 5
立创商城:
PNP 20V 8A
得捷:
TRANS PNP 20V 8A POWERDI5
艾睿:
The versatility of this PNP DXTP19020DP5-13 GP BJT from Diodes Zetex makes it capable of being use as either a switch or amplifier in your circuit. This bipolar junction transistor&s;s maximum emitter base voltage is 7 V. Its maximum power dissipation is 3000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 20 V and a maximum emitter base voltage of 7 V.
安富利:
Trans GP BJT PNP 20V 8A 3-Pin2+Tab PowerDI 5 T/R
Chip1Stop:
Trans GP BJT PNP 20V 8A 3-Pin2+Tab PowerDI 5 T/R
Verical:
Trans GP BJT PNP 20V 8A 3000mW Automotive 3-Pin3+Tab PowerDI 5 T/R
DeviceMart:
TRANS PNP 20V 8A POWERDI5
Win Source:
TRANS PNP 20V 8A POWERDI5 / Bipolar BJT Transistor PNP 20 V 8 A 176MHz 3 W Surface Mount PowerDI™ 5
极性 PNP
耗散功率 3 W
击穿电压集电极-发射极 20 V
集电极最大允许电流 8A
最小电流放大倍数hFE 300 @100mA, 2V
额定功率Max 3 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 3000 mW
安装方式 Surface Mount
引脚数 3
封装 POWERDI-5
封装 POWERDI-5
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
