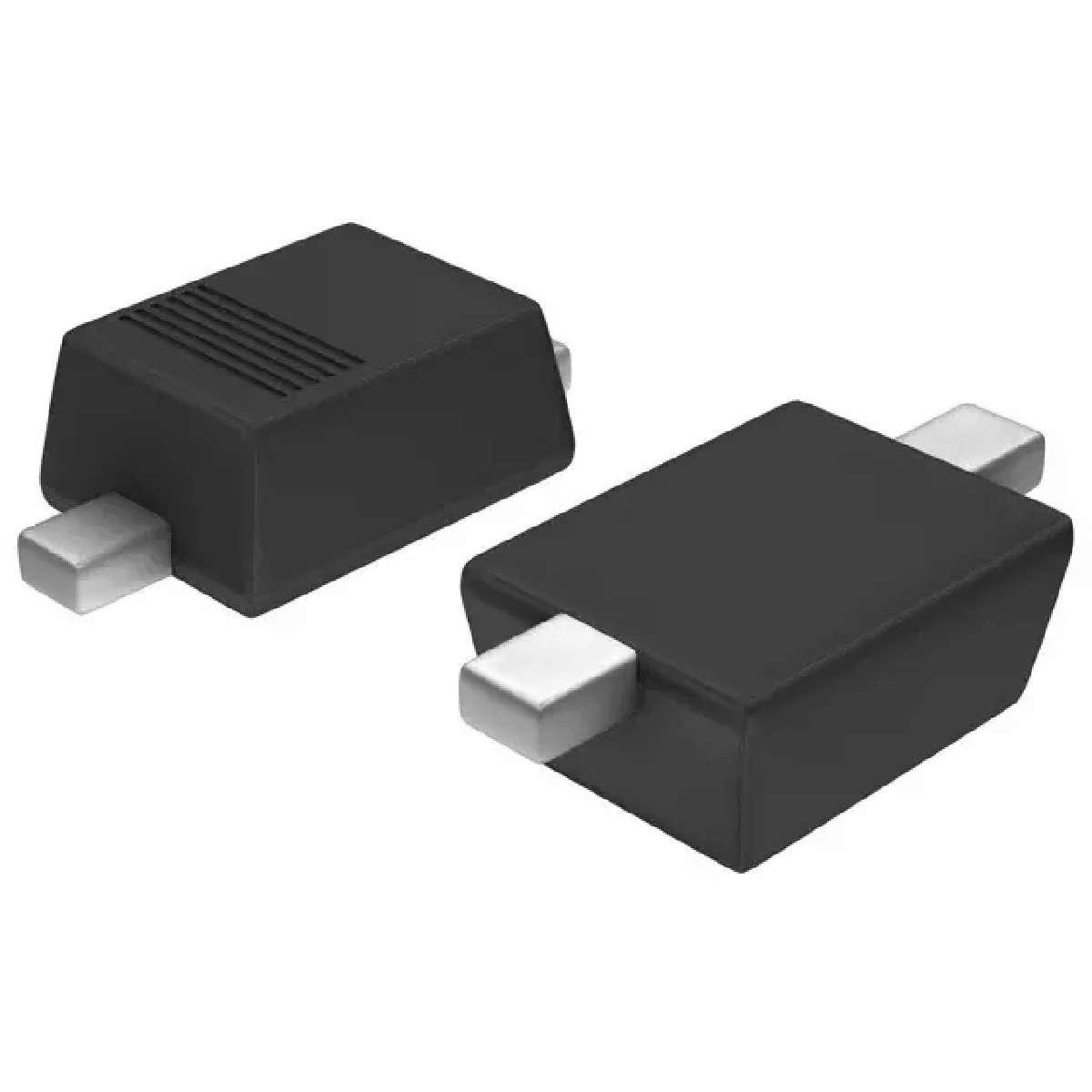

DiodesZetex DDZ30CSF-7 1 齐纳二极管, 单路, 30V 2.5% 500 mW 表面贴装 2-Pin SOD-323F
Features
• 500mW Power Dissipation on FR-4 PCB
• Very Tight Tolerance on VZ
• Ideally Suited for Automated Assembly Processes
• Lead, Halogen and Antimony Free, RoHS Compliant Note 1
• Halogen and Antimony Free "Green" Device Notes 2 & 3
得捷:
DIODE ZENER 29.09V 500MW SOD323F
艾睿:
Check out this perfect DDZ30CSF-7 zener diode from Diodes Zetex for operating in the reverse breakdown region. Its maximum power dissipation is 500 mW. Its test current is 5 mA. Its maximum leakage current is 0.07 μA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This zener device has a nominal voltage of 29.09 V and a voltage tolerance of 3%. This zener diode has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
Diode, Zener, Single, 29.09v, 500mW, SOD323F
安富利:
Diode Zener Single 29.09V 3% 500mW 2-Pin SOD-323F T/R
Chip1Stop:
Diode Zener Single 29.09V 3% 500mW 2-Pin SOD-323F T/R
Verical:
Diode Zener Single 29.09V 500mW Automotive 2-Pin SOD-323F T/R
AMEYA360:
DiodesZetex DDZ30CSF-7 1 齐纳二极管, 单路, 30V 2.5% 500 mW 表面贴装 2-Pin SOD-323F
Win Source:
DIODE ZENER 29.09V 500MW SOD323F
容差 ±3 %
额定功率 500 mW
正向电压 900mV @10mA
耗散功率 0.5 W
测试电流 5 mA
稳压值 29.09 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-323
封装 SOD-323
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
