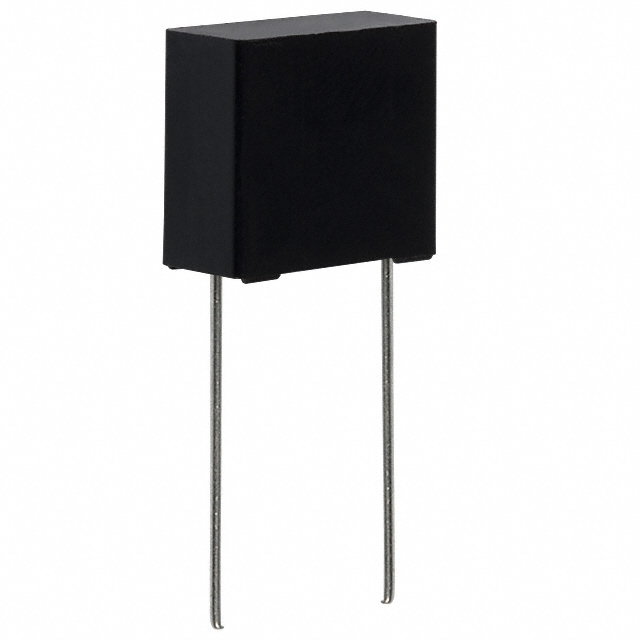

PANASONIC ELECTRONIC COMPONENTS ECQ-U2A224ML 膜电容, ECQUL系列, 0.22 µF, ± 20%, X2, 径向引线, 100 °C
The ECQUL series capacitors are compact, metalized polyester film capacitors. The capacitance value ranges from 0.001µF to 2.2µF. ECQUL series capacitors are approved by UL/CSA and European safety regulation class X2 or class Y2/X2. These capacitors are preferred for applications such as interference suppressors.
- .
- Rated voltage of 250VAC UL/CSA
- .
- Available in ±10% and ±20% tolerance
- .
- UL60384-14, CAN/CSA E60384-14, CSA C22.2 No.8-M1986, EN60384-14, IEC60384-14 approved
- .
- Flame retardant plastic case and non combustible resin
- .
- Operating temperature range -40°C to 100°C
额定电压DC 909 mV
额定电压AC 275 V
电容 0.22 µF
容差 ±20 %
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 15 mm
长度 17.5 mm
宽度 8 mm
高度 16 mm
脚长度 20 mm
封装 Radial, Box
引脚间距 15 mm
介质材料 Polyester
工作温度 -40℃ ~ 100℃
产品生命周期 Unknown
包装方式 Bulk
制造应用 工业, EMI，RFI 抑制, Industrial, Portable Devices, 电源管理, 便携式器材, Power Management, 消费电子产品, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8532250010
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ECQ-U2A224ML Panasonic 松下 | 当前型号 | 当前型号 |
F17724222260 威世 | 功能相似 | ECQ-U2A224ML和F17724222260的区别 |
