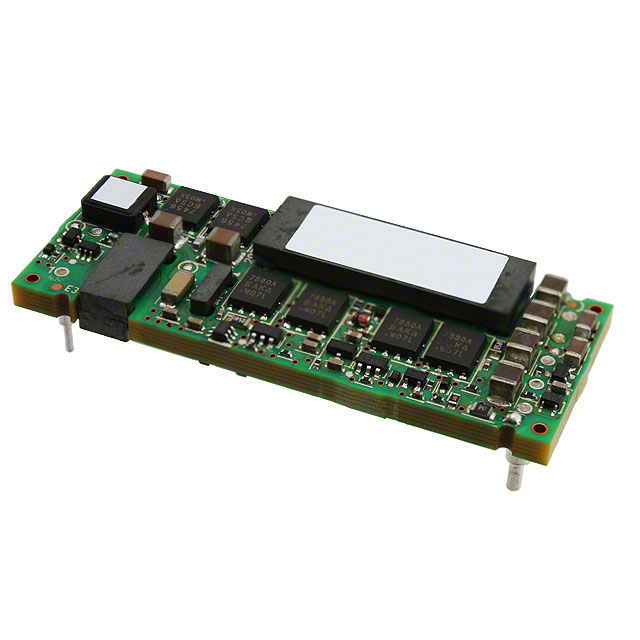

E48SH05020NRFA

Module DC-DC 48Vin 1Out 5V 20A 120W 8Pin 1/8-Brick

The Delphi Series E48SH Eighth Brick, 48V input, single output,

isolated DC/DC converters are the latest offering from a world leader in

power systems technology and manufacturing ― , Inc.

This product family is available in either a through-hole or

surface-mounted package and provides up to 120 watts of power or

50A of output current 1.2V and below in an industry standard footprint

and pinout. The E48SH converter operates from an input voltage of

36V to 75V and is available in output voltages from 1.0V to 15V.

FEATURES

♦ High efficiency: 90% @1.8V/40A

♦ Size: 58.4mm x 22.8mm x9.5mm 2.30”x0.90”x0.37”

♦ Industry standard pin out

♦ Fixed frequency operation

♦ Input UVLO, Output OTP, OCP, OVP

♦ Monotonic startup into normal and pre-biased loads

♦ 2250V Isolation and basic insulation

♦ No minimum load required

♦ No negative current during power or enable on/off

♦ ISO 9001, TL 9000, ISO 14001, QS 9000, OHSAS 18001 certified manufacturing facility

♦ UL/cUL 60950 US & Canada recognized, and TUV EN60950 certified

♦ CE mark meets 73/23/EEC and 93/68/EEC directive

APPLICATIONS

♦ Telecom/DataCom

♦ Wireless Networks

♦ Optical Network Equipment

♦ Server and Data Storage

♦ Industrial/Test Equipment
