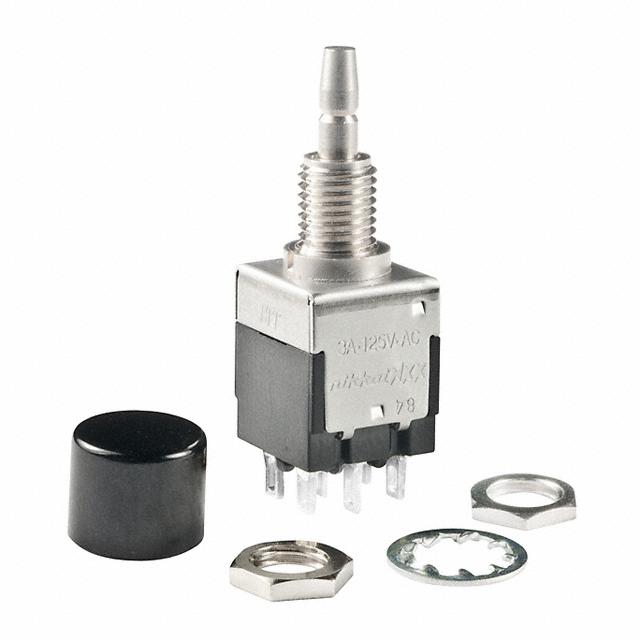

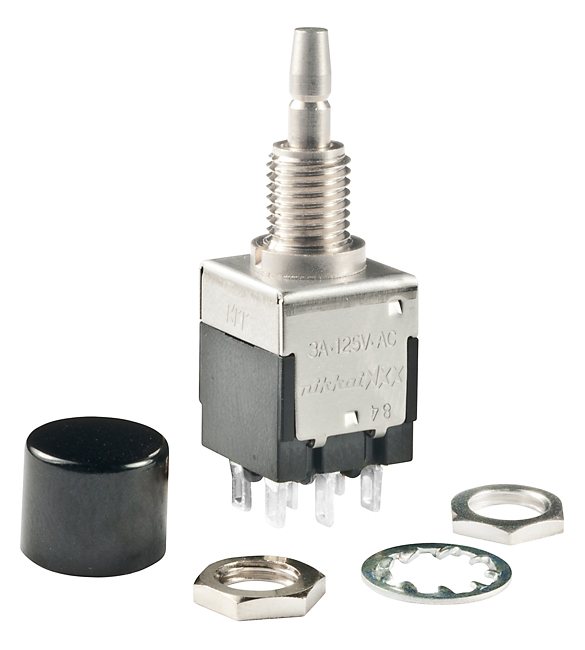

EB2061-CA

Switch Push Button ON ON DPDT Round Plunger 3A 125VAC Momentary Contact Solder Lug Panel Mount

* 3A Power Level & 0.4VA Logic Level; Snap-in, Bushing and PCB Mount, Light Touch Actuation, UL, CSA, cULus

.

3 Amp and 0.4VA Miniatures

.

Power- and logic-level capabilities are available to suit varying applications.

.

Pushbutton models have light-touch actuation.

.

The high torque bushing prevents separation or rotation of the bushing from the metal frame during installation.

.

The stainless-steel frame resists corrosion.

.

Heat-resistant resin case meets UL 94V-0 flammability rating.

.

High insulation barriers protect against crossover in double pole devices.

.

1500V dielectric strength between contacts and case is accomplished by clinching the frame away from the terminals.

.

Epoxy sealed terminals prevent entry of solder flux and other contaminants.
