EM430F6137RF900参数规格_中文资料_数据手册PDF

EM430F6137RF900概述

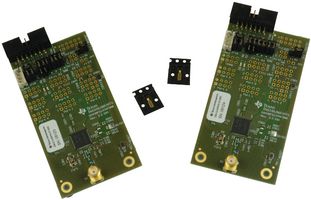

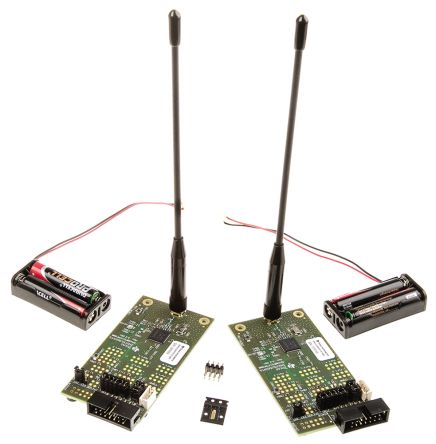

CC430F61xx Wireless Development ToolThe** EM430F6137RF900** is a complete development kit for the CC430F61xx wireless System-on-Chip SoC including all the hardware required to develop an entire wireless project. The development kit includes two sub-1GHz wireless target boards featuring the highly integrated CC430F6137IRGC chip.**CC430 wireless target board** Supports CC430F613x and CC430F612x parts in the 64-pin QFN RGC package Supports software development for CC430F513x parts in the 48-pin QFN RGZ package On-board CC430F6137 SoC, 32KB Flash memory, 4KB RAM Supported carrier frequencies: 868 and 915MHz ISM Bands Reset pushbutton 2 x User LEDs User pushbutton SMA antenna connector JTAG connector Supports SimpliciTI™ low-power network stack Applications: Local wireless communication links for the Internet-of-Things IoT **RS Product Codes for Devices** 827-4644 CC430F6137IRGCT QFN64 ### 随附Documentation, 2 x battery holders, 4 x AAA batteries, 2 x 868/915MHz antennas, 2 x 32.768kHz crystals, 18 x PCB 8-pin headers### 单芯片组件，Texas Instruments

CC430F61xx Wireless Development Tool

The

.: * ** is a complete development kit for the CC430F61xx wireless System-on-Chip SoC including all the hardware required to develop an entire wireless project. The development kit includes two sub-1GHz wireless target boards featuring the highly integrated CC430F6137IRGC chip.

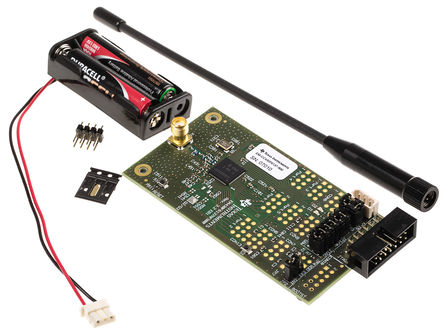

**CC430 wireless target board**

Supports CC430F613x and CC430F612x parts in the 64-pin QFN RGC package

Supports software development for CC430F513x parts in the 48-pin QFN RGZ package

On-board CC430F6137 SoC, 32KB Flash memory, 4KB RAM

Supported carrier frequencies: 868 and 915MHz ISM Bands

Reset pushbutton

2 x User LEDs

User pushbutton

SMA antenna connector

JTAG connector

Supports Simplici™ low-power network stack

Applications: Local wireless communication links for the Internet-of-Things IoT

**RS Product Codes for Devices**

827-4644 CC430F6137IRGCT QFN64

### 随附

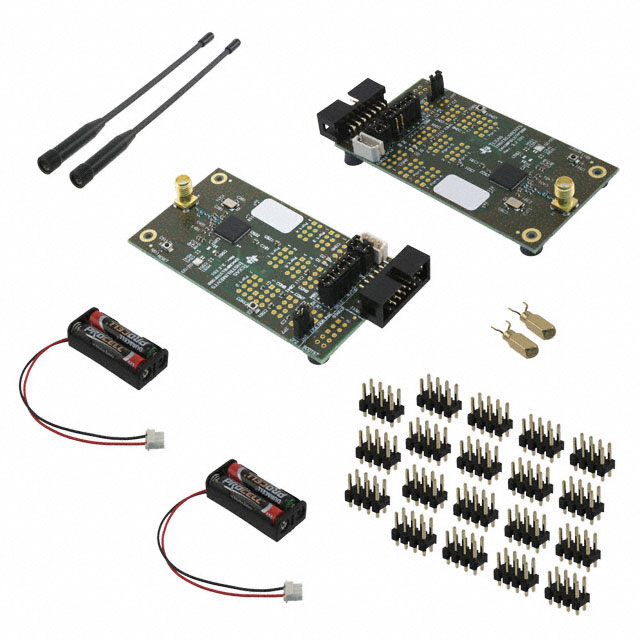

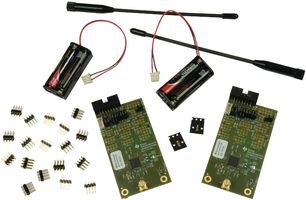

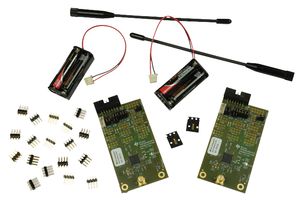

Documentation, 2 x battery holders, 4 x AAA batteries, 2 x 868/915MHz antennas, 2 x 32.768kHz crystals, 18 x PCB 8-pin headers

EM430F6137RF900中文资料参数规格

其他

产品生命周期 Unknown

包装方式 Bulk

制造应用机器人, 无线

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 5A002.a.1.a

香港进出口证 NLR

数据手册

在线购买EM430F6137RF900

型号： EM430F6137RF900

制造商： TI 德州仪器

描述：CC430F61xx Wireless Development Tool The** EM430F6137RF900** is a complete development kit for the CC430F61xx wireless System-on-Chip SoC including all the hardware required to develop an entire wireless project. The development kit includes two sub-1GHz wireless target boards featuring the highly integrated CC430F6137IRGC chip. **CC430 wireless target board** Supports CC430F613x and CC430F612x parts in the 64-pin QFN RGC package Supports software development for CC430F513x parts in the 48-pin QFN RGZ package On-board CC430F6137 SoC, 32KB Flash memory, 4KB RAM Supported carrier frequencies: 868 and 915MHz ISM Bands Reset pushbutton 2 x User LEDs User pushbutton SMA antenna connector JTAG connector Supports SimpliciTI™ low-power network stack Applications: Local wireless communication links for the Internet-of-Things IoT **RS Product Codes for Devices** 827-4644 CC430F6137IRGCT QFN64 ### 随附 Documentation, 2 x battery holders, 4 x AAA batteries, 2 x 868/915MHz antennas, 2 x 32.768kHz cry
