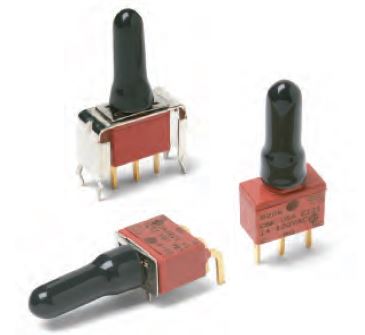

E020 系列 密封 单刀双掷 开-瞬时 V 型支架 通孔 按键开关
Ideal for low current and low voltage circuits, this push button switch from C&K Components will allow you to switch from connected to disconnected state. This device has a maximum current rating of 1 A @ 120VAC 28VDC. It has a SPDT configuration. This push switch has an operating temperature range of -30 °C to 75 °C. The E121SD1V3GE push switch has a PC pin termination style. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC. This product is 16.26 mm long, 20.26 mm tall and 8.13 mm deep.
触点电镀 Gold, Gold over Nickel
额定电压DC 28 V
额定电压AC 120 V
额定电流 1A AC, 1A DC
绝缘电阻 1000 MΩ
排数 1
触点类型 SPDT
额定电流Max 1A @120VAC, 28VDC
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <50 mΩ
安装方式 Lug, PCB
封装 -
长度 16.26 mm
高度 20.26 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
E121SD1V3GE C&K Components | 当前型号 | 当前型号 |
E112SD1V3GE C&K Components | 功能相似 | E121SD1V3GE和E112SD1V3GE的区别 |
SP35Y02000041 Apem Components | 功能相似 | E121SD1V3GE和SP35Y02000041的区别 |
