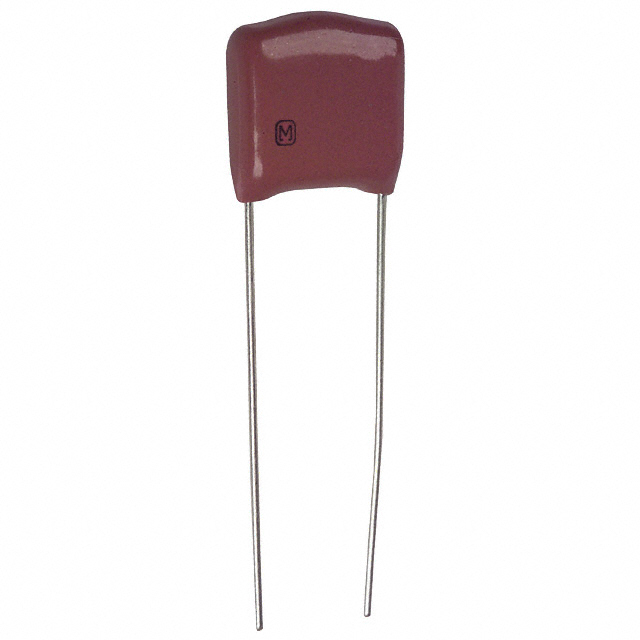

PANASONIC ELECTRONIC COMPONENTS ECQ-E1824JF 膜电容, 0.82UF, 100V, 5%, 径向引线
0.82µF Film Capacitor 63V 100V Polyester, Metallized Radial
立创商城:
820nF ±5% 100V
得捷:
CAP FILM 0.82UF 5% 100VDC RADIAL
贸泽:
Film Capacitors 100VDC 0.82uF 5% MPET L/S=10mm
e络盟:
PANASONIC ELECTRONIC COMPONENTS ECQ-E1824JF 膜电容, 0.82UF, 100V, 5%, 径向引线
艾睿:
This ECQ-E1824JF film capacitor from Panasonic is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 100 VDC. This part has a maximum operating temperature of 105 °C. It has a tolerance of 5%. This part has a lead diameter of 0.6 mm and a pitch of 10 mm. This product is 12Max mm long, 13.5Max mm tall and 6Max mm deep. Its capacitance value is 0.82uF. The ECQ-E1824JF part has a radial termination style.
Chip1Stop:
Cap Film 0.82uF 100V PET 5% 12 X 6 X 13.5mm Radial 10mm 105C Bulk
Verical:
Cap Film 0.82uF 100V PET 5% 12 X 6 X 13.5mm Radial 10mm 105C Bulk
Newark:
# PANASONIC ELECTRONIC COMPONENTS ECQ-E1824JF Film Capacitor, 0.82 µF, PET Polyester, 100 V, ECQEF Series, ± 5%, Radial Leaded
Electro Sonic:
Cap Film 0.82uF 100V PET 5% 12 X 6 X 13.5mm Radial 10mm 105°C Bulk
