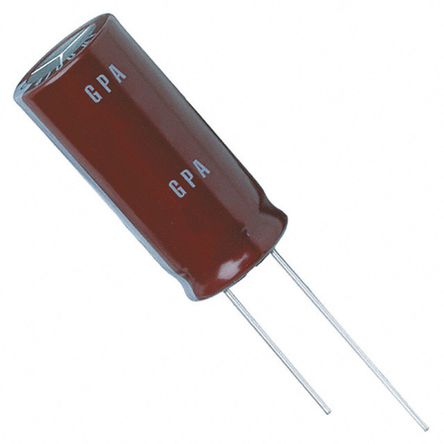

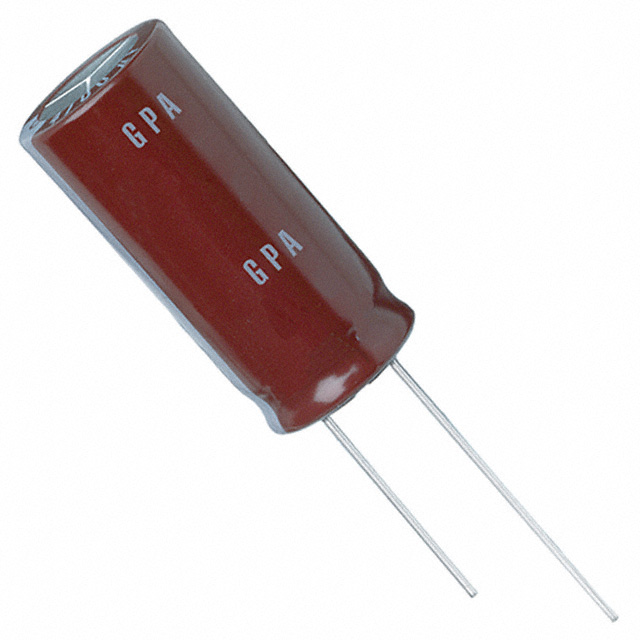

EGPA630ELL152MM35S

GPA 系列微型铝电解电容器GPA 系列微型铝电解电容器是 GXE 系列的精简、低阻抗和高波纹电流版本 确定 150℃ 时使用时间较短，而 125℃ 时寿命较长 指定的 ESR 可承受耐受性测试 适用于高波纹电流汽车应用（直接燃油喷射和电子助力转向系统等） ### 径向，125 °C

GPA 系列微型铝电解器

GPA 系列微型铝电解电容器是 GXE 系列的精简、低阻抗和高波纹电流版本

确定 150℃ 时使用时间较短，而 125℃ 时寿命较长

指定的 ESR 可承受耐受性测试

适用于高波纹电流汽车应用（直接燃油喷射和电子助力转向系统等）

### 径向，125 °C

欧时:
Capacitor Radial GPA Series 63V 1500uF

艾睿:
Using this electrolytic EGPA630ELL152MM35S aluminum capacitor from United Chemi-con in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 125 °C. The EGPA630ELL152MM35S aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. Its leakage current is 4@1Min μA. This product is 35 mm tall with a diameter of 18 mm. Its capacitance value is 1500uF.

Verical:
Cap Aluminum Lytic 1500uF 63V 20% 18 X 35mm Radial 7.5mm 0.035 Ohm 2890mA 5000h 125C Automotive Bulk

MASTER:
Cap Aluminum Lytic 1500uF 63V 20% 18 X 35mm Radial 7.5mm 0.036 Ohm 2770mA 5000h 125°C Automotive Bulk

Online Components:
Cap Aluminum Lytic 1500uF 63V 20% 18 X 35mm Radial 7.5mm 0.036 Ohm 2770mA 5000h 125°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 1500uF 63V 20% 18 X 35mm Radial 7.5mm 0.035 Ohm 2890mA 5000h 125°C Automotive Bulk
