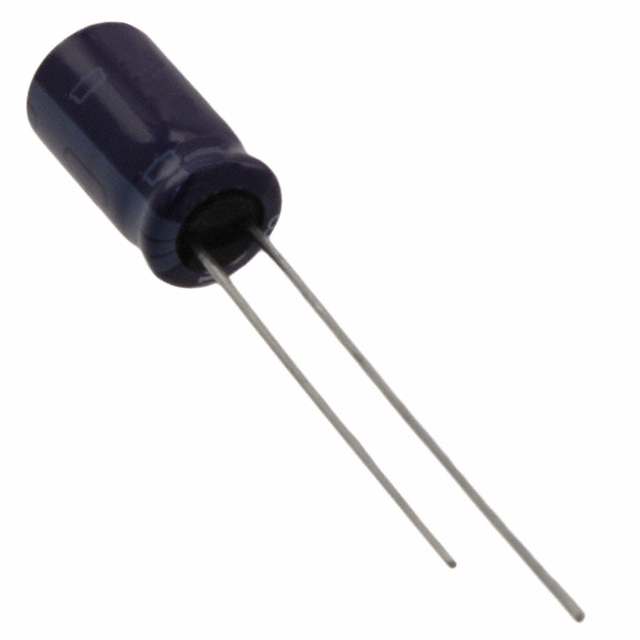

ELXZ100ELL331MF15D

Cap Aluminum Lytic 330uF 10V 20% 6.3 X 15mm Radial 2.5mm 400mA 2000H 105℃ Automotive Bulk

LXZ 系列

径向铝电解器在高频率下阻抗非常低，耐受性出色。耐溶剂（有关准则，请参见数据表）

欧时:
Al Capacitor LXZ 10V 330uF 6.3x15

得捷:
CAP ALUM 330UF 20% 10V RADIAL

艾睿:
By implementing this electrolytic ELXZ100ELL331MF15D aluminum capacitor from United Chemi-con in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 330uF. This product is 15 mm tall with a diameter of 6.3 mm. This part has a lead diameter of 0.5 mm and a pitch of 2.5 mm. Its leakage current is 3@2Min μA. The ELXZ100ELL331MF15D aluminum electrolytic capacitor has a radial termination style.

Verical:
Cap Aluminum Lytic 330uF 10V 20% 6.3 X 15mm Radial 2.5mm 400mA 2000h 105C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 330uF 10V 20% 6.3 X 15mm Radial 2.5mm 400mA 2000h 105°C Automotive Bulk
