EXP-0911/05/S参数规格_中文资料_数据手册PDF

EXP-0911/05/S概述

Flex 电缆插头配接直插式柔性或面板安装类型正电压、快溶式锁紧圈 - 可佩戴手套旋转插头或插座型号 EXP-O 系列 13 - 15mm 电缆直径。验收标准，7 - 13mm，带附加的压盖包，请参见 7081015 EXP-A 系列 20 - 22mm 电缆直径。验收标准，带附加的压盖包，请参见 7081015 应力消除夹（仅 EXP-A 系列） ### Bulgin EXP Series EXPloraBulgin Components EXPlora series of connectors for use in hazardous environments. Tested for use in Zone 2 and 22, the connectors are manufactured from UL94V-0 rated polycarbonate material and are environmentally sealed to IP68.The EXPlora range is suited for manufacturers of secondary electrical equipment such as motors, pumps, lighting equipment, and process and control gear for use in factories and plant where hazardous or explosive atmospheres can be caused by flammable gases, mists, vapors or by combustible dusts.Water and dustproof to IP68 when mated Scoop proof contacts Leading earth pin For 3,4,5 & 7 pole versions Easy assembly, no special tools required Field serviceable,screw termination Positive locating keyways, cannot be mis-mated ### 认可ATEX Approval for Zone 2 and Zone 22 Applications

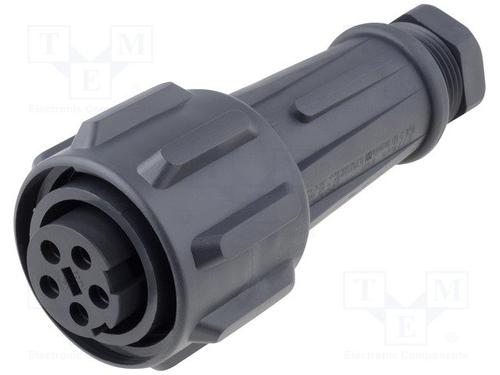

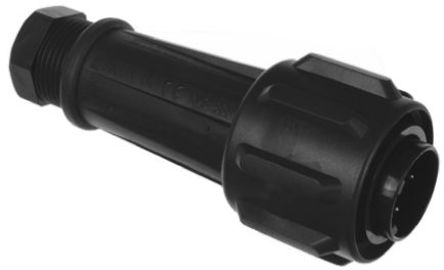

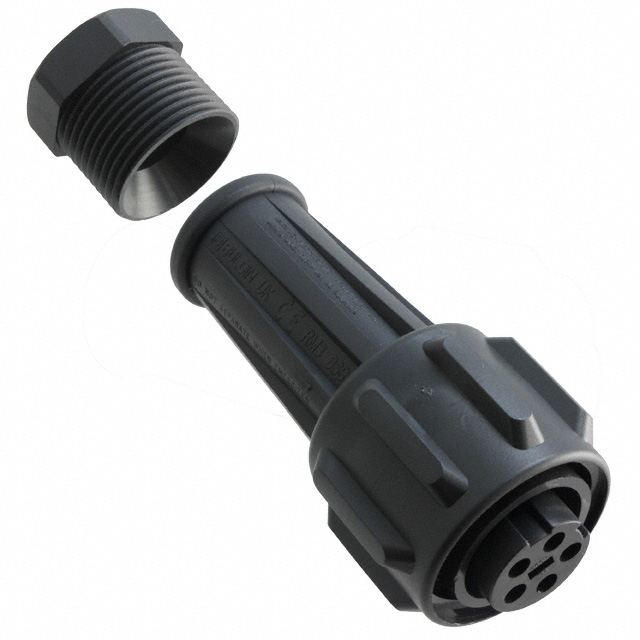

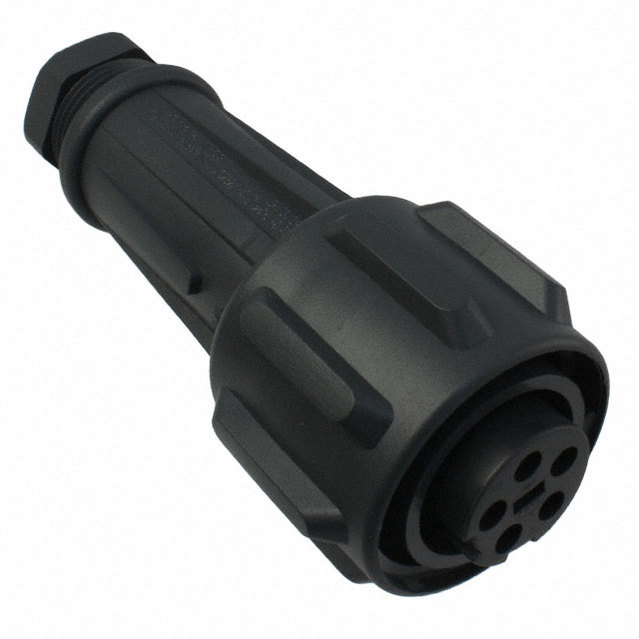

Flex 电缆插头

配接直插式柔性或面板安装类型

正电压、快溶式锁紧圈 - 可佩戴手套旋转

插头或插座型号

EXP-O 系列 13 - 15mm 电缆直径。验收标准，7 - 13mm，带附加的压盖包，请参见 7081015

EXP-A 系列 20 - 22mm 电缆直径。验收标准，带附加的压盖包，请参见 7081015

应力消除夹（仅 EXP-A 系列）

### Bulgin EXP Series EXPlora

EXPlora series of connectors for use in hazardous environments. Tested for use in Zone 2 and 22, the connectors are manufactured from UL94V-0 rated polycarbonate material and are environmentally sealed to IP68.The EXPlora range is suited for manufacturers of secondary electrical equipment such as motors, pumps, lighting equipment, and process and control gear for use in factories and plant where hazardous or explosive atmospheres can be caused by flammable gases, mists, vapors or by combustible dusts.

Water and dustproof to IP68 when mated

Scoop proof contacts

Leading earth pin For 3,4,5 & 7 pole versions

Easy assembly, no special tools required

Field serviceable,screw termination

Positive locating keyways, cannot be mis-mated

### 认可

ATEX Approval for Zone 2 and Zone 22 Applications

EXP-0911/05/S中文资料参数规格

技术参数

触点数 5

极性 Female

触点电镀 Nickel

额定电流 18 A

绝缘电阻 1000000 MΩ

易燃性等级 UL 94 V-0

针脚数 5

额定电流Max 18 A

工作温度Max 55 ℃

工作温度Min -20 ℃

额定电压 600VAC, 600VDC

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

引脚数 5

物理参数

触点材质 Brass

工作温度 -20℃ ~ 55℃

外壳材质 Polyester

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册
