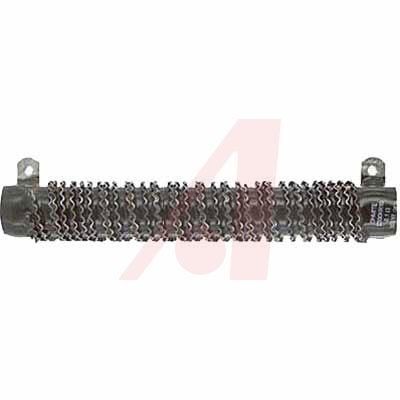

线绕电阻器 - 底架安装 300watt 3.1ohm 10% High Power
Res Wirewound 3.1 Ohm 10% 300W ±400ppm/°C Vitreous Enamel RDL Lug Bolt-On
贸泽:
线绕电阻器 - 底架安装 300watt 3.1ohm 10% High Power
Allied Electronics:
300W 3.1 OHMS VIT CORRIB 10%
MASTER:
Res Wirewound 3.1 Ohm 10% 300W ±400ppm/°C Vitreous Enamel RDL Lug Bolt-On
Online Components:
Res Wirewound 3.1 Ohm 10% 300W ±400ppm/°C Vitreous Enamel RDL Lug Bolt-On
Electro Sonic:
Res Wirewound 3.1 Ohm 10% 300W ±400ppm/°C Vitreous Enamel RDL Lug Bolt-On
容差 ±10 %
额定功率 300 W
电阻 3.1 Ω
阻值偏差 ±10 %
工作温度Max 400 ℃
工作温度Min 25 ℃
安装方式 Solder Lug
封装 Radial, 3 Lead, Tubular
长度 215.90 mm
直径 28.6 mm
封装 Radial, 3 Lead, Tubular
材质 Ceramic
工作温度 25℃ ~ 400℃
温度系数 ±400 ppm/℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
HTS代码 8533290000
