EHF-113-01-L-D

Samtec EHF 系列 1.27mm 有罩 IDC 印刷电路板弹出器管座EHF 系列 1.27mm 节距有罩双排印刷电路板 IDC 管座，带极化凹口，用于精确配接、弹射闩锁和镀金触点。 这些 EHF 系列 1.27mm 印刷电路板弹出器管座提供直角印刷电路板通孔安装或印刷电路板 SMT 安装，具有多达 50 个触点。 如需配接连接器，请参见 FFSD（无应力消除）和 FFTP 系列 IDC 插座电缆组件。### 1.27mm 板到板和线对板 Samtec

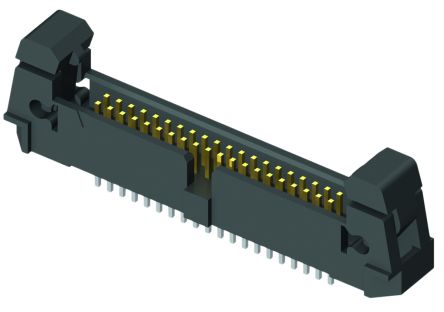

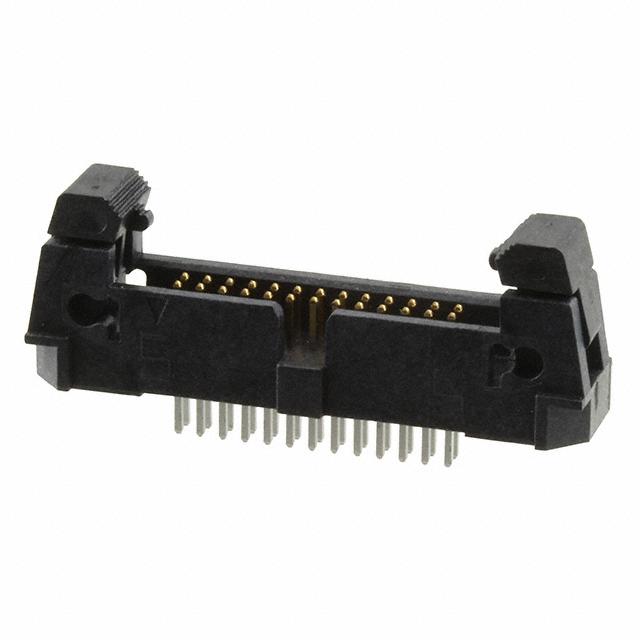

EHF 系列 1.27mm 有罩 IDC 印刷电路板弹出器管座

EHF 系列 1.27mm 节距有罩双排印刷电路板 IDC 管座，带极化凹口，用于精确配接、弹射闩锁和镀金触点。 这些 EHF 系列 1.27mm 印刷电路板弹出器管座提供直角印刷电路板通孔安装或印刷电路板 SMT 安装，具有多达 50 个触点。 如需配接，请参见 FFSD（无应力消除）和 FFTP 系列 IDC 插座电缆组件。

得捷:
CONN HEADER VERT 26POS 1.27MM

欧时:
Samtec PCB 针座 EHF 系列 26路 1.27mm节距 2排 直向 EHF-113-01-L-D, 焊接端接, 通孔

e络盟:
线至板连接器, 1.27 mm, 26 触点, 针座, EHF Series, 通孔安装, 2 排

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this ejector EHF-113-01-L-D header connector from Samtec. This HDR connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 1.27 mm. This device has a maximum current rating of 1.75 A. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. EHF-113-01-L-D is housed in black liquid crystal polymer. This product is 30.99 mm long, 11.3 mm tall and 6.67 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Ejector Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn Ejector Header HDR 26 POS 1.27mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  EHF-113-01-L-D  Wire-To-Board Connector, 1.27 mm, 26 Contacts, Header, EHF Series, Through Hole, 2 Rows
